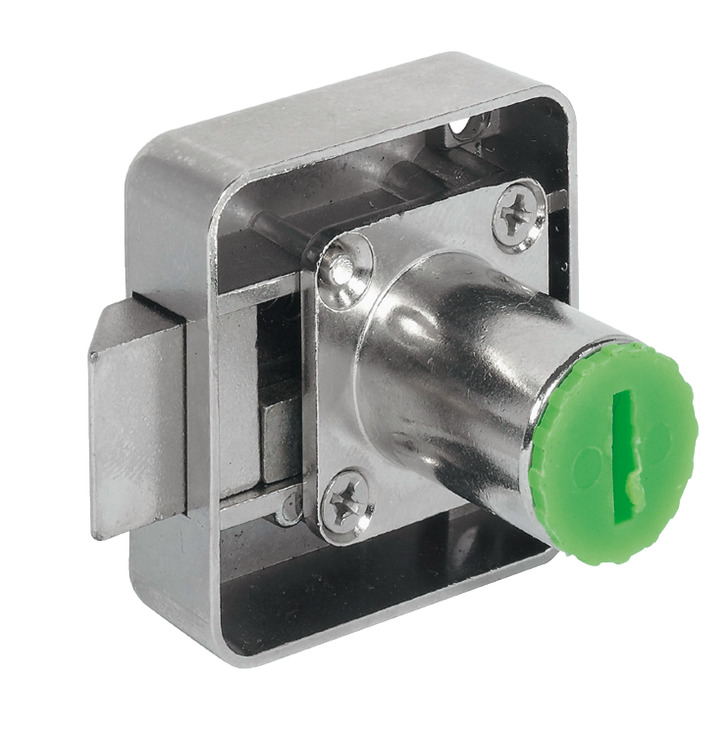

Hafele 232.37.625 25mm Spring Bolt Rim Lock with 1" BacksetHafele 232.37.625 Spring Bolt Rim Lock, 25 mm (1") Backset offers a robust and secure solution for your locking needs, specifically designed for drawer applications. This rim lock features a 25 mm backset and is compatible with the Symo cylinder removable core, allowing for straightforward installation and maintenance on-site. Crafted from durable zinc alloy and finished in a sleek nickel plating, this lock not only ensures longevity but also complements a range of cabinetry styles. The cylinder housing has a length of 22.50 mm and is prepared for a round cylinder with a diameter of 18.00 mm, providing flexibility in key options. Notably, the latch can be locked in the open position, facilitating the installation and removal of the cylinder core using the removal key, which enhances convenience during setup. Installation is simplified with the key turn to the right, making it accessible for users. The package includes one latchbolt rim lock, ensuring you have everything needed for a successful installation. Ideal for applications that require front-inserted cylinder cores, this lock from Hafele blends practicality with security, making it an essential addition to your hardware lineup.
Spring Bolt Rim Lock, 25 mm (1") Backset
For combination with Symo cylinder removable core, Drawer version

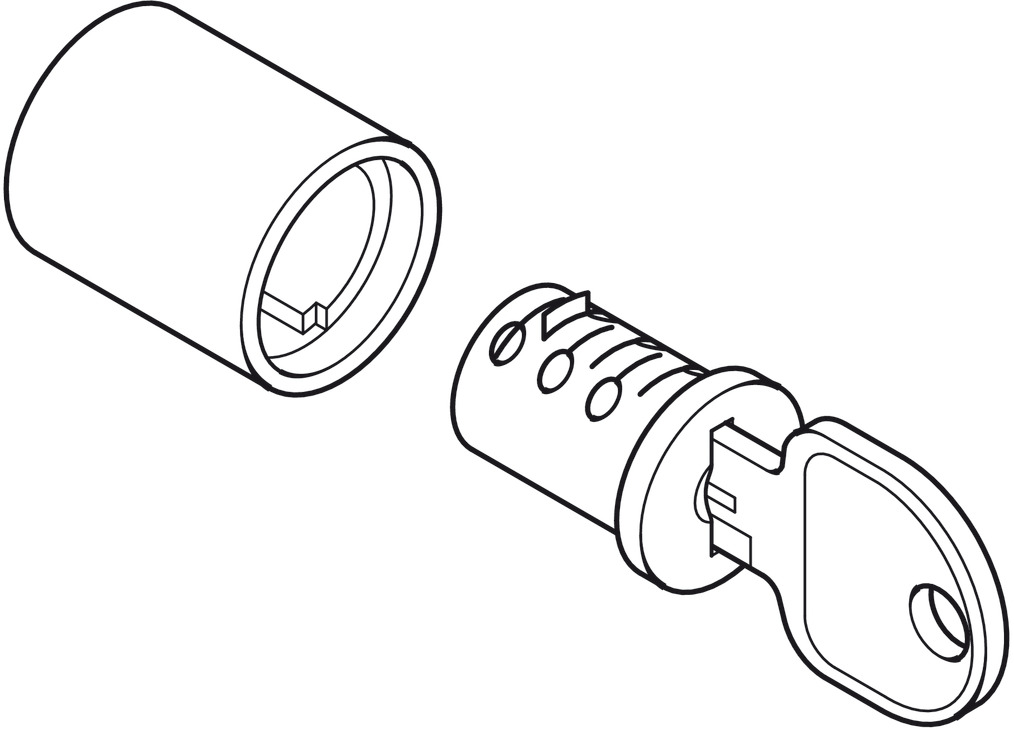

The latch can be locked in the open position, which is the only way to install/remove the cylinder core using the removal key.
Attributes
Ship via: Can Ship UPS
Area of application: For cylinder cores that are inserted from the front on-site

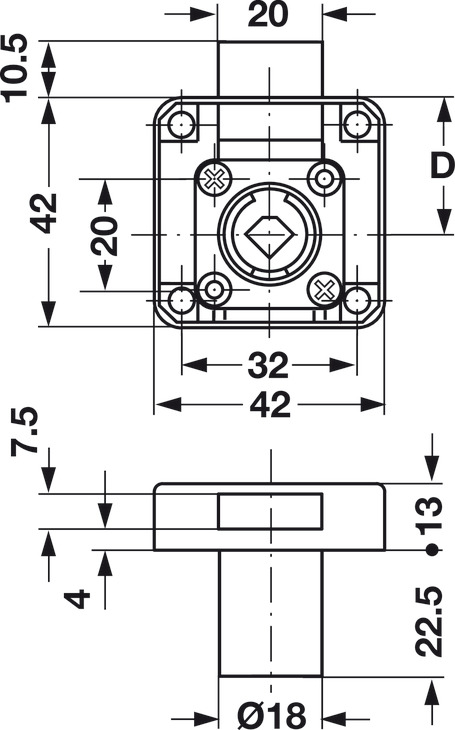

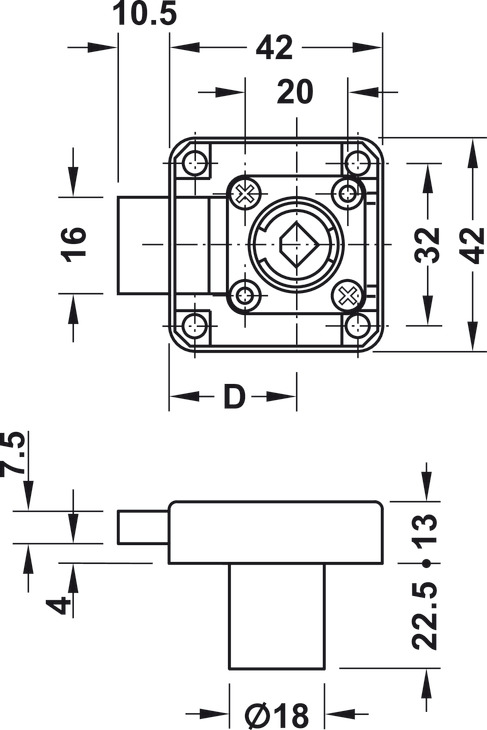

Backset (mm): 25.00 mm
Color/finish: Nickel plated
Cylinder housing length: 22.50 mm
Cylinder shape: prepared for round cylinder
Cylinder Ø (mm): 18.00 mm
Installation: Drawer version (key turn to the right)
Material: Zinc alloy
Mounting: Drawer version (key turn to the right)
Supplied with: 1 latchbolt rim lock
Version: Locking of bolt in unlocked position possible, so that the cylinder core can be installed and removed with the removal key
With key: No
