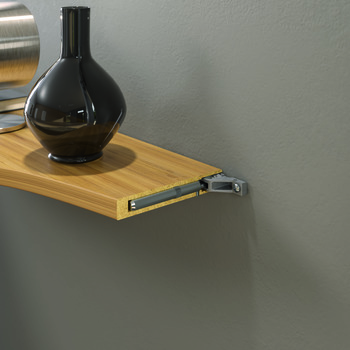

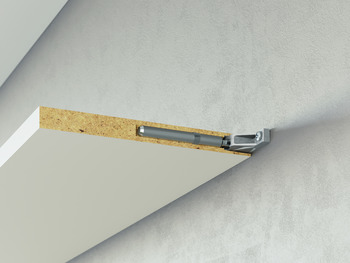

Hafele 283.39.049 Concealed shelf support, Triade Slim, is designed for the discreet installation of floating shelves, providing both strength and versatility. Constructed from durable zinc alloy with a sleek zinc-plated finish, this support ensures that your shelves remain sturdy, even under heavy loads of up to 15 kg per pair for shelves 200 mm deep. With an adjustment facility that includes tilt adjustment of -1° to +5° using a 2 mm Allen key, along with side adjustment of +/-2 mm and height adjustment of +/-1 mm via slots on the screw-in plate, achieving the perfect shelf alignment has never been easier. This support is suitable for various shelf materials and thicknesses, accommodating depths from 120 mm to 200 mm and a minimum thickness of 18 mm. Ideal for both residential and commercial applications, the Triade Slim support is engineered to meet the demands of modern interior design. It is important to ensure that the wall is of suitable quality for the installation. Please note that Ø4.5 mm pan head fixing screws are sold separately. Each package includes one Triade Slim concealed shelf support, making it a practical choice for your shelving needs.

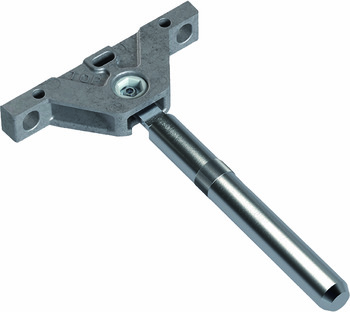

Concealed shelf support, Triade Slim
Zinc plated
It is the responsibility of the customer to ensure the wall is of a suitable quality to hold the shelf fixing in place and to use the proper hardware fittings according to the construction of the wall
Ship via: Can Ship UPS
Adjustment facility: Tilt adjustment: -1° to +5° via S2 mm Allen keySide adjustment: +/-2 mmHeight adjustment: +/-1 mm via slots on screw in plate"
Area of application: For concealed fixing of floating shelves. Ensures shelves remain sturdy, even under heavy loads. Suitable for various shelf materials and thicknesses. Offers versatile applications for both residential and commercial use.
Color/finish: zinc plated
For shelf depth: 120 – 200 mm
For shelf thickness: ≥18 mm

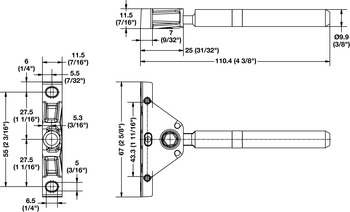

Height: 11.50 mm
Length: 110.00 mm
Load bearing capacity per pair: 15.00 kg
Material: Zinc alloy
Note on load bearing capacity: 15 kg per pair for shelf 200 mm deep
Order reference: Please order Ø4.5 mm pan head fixing screws separately
Supplied with: 1 Triade Slim concealed shelf support
