Hafele 348.31.733 Grass TIOMOS Concealed Hinge, 110 Opening Angle, Inset MountHafele 348.31.733 Concealed Hinge, Grass TIOMOS offers a sophisticated solution for standard applications, featuring a generous 110° opening angle that enhances accessibility. Designed with an inset mounting style, this hinge is perfect for cabinetry that requires a seamless finish. The soft-close mechanism provides a gentle, controlled closure, ensuring longevity and reducing wear on both the hinge and the door. This model includes an optional integrated, 3-way adjustable soft-closing feature located in the hinge arm, allowing for precise adjustments in side, height, and depth-ensuring optimal alignment with a door thickness of up to 24 mm. It is crafted from durable materials, with a steel cup and a zinc alloy hinge arm, finished in a sleek nickel plating for a modern aesthetic. Installation is efficient, utilizing a clip system that allows for door mounting without tools, while the cup drilling depth of 12.60 mm and diameter of 35.00 mm facilitate straightforward assembly. The hinge is designed for wooden doors and is compatible with a drilling pattern of 4-2/11, making it a versatile choice for various projects. Elevate your cabinetry with Hafele 348.31.733 for a blend of functionality and style.

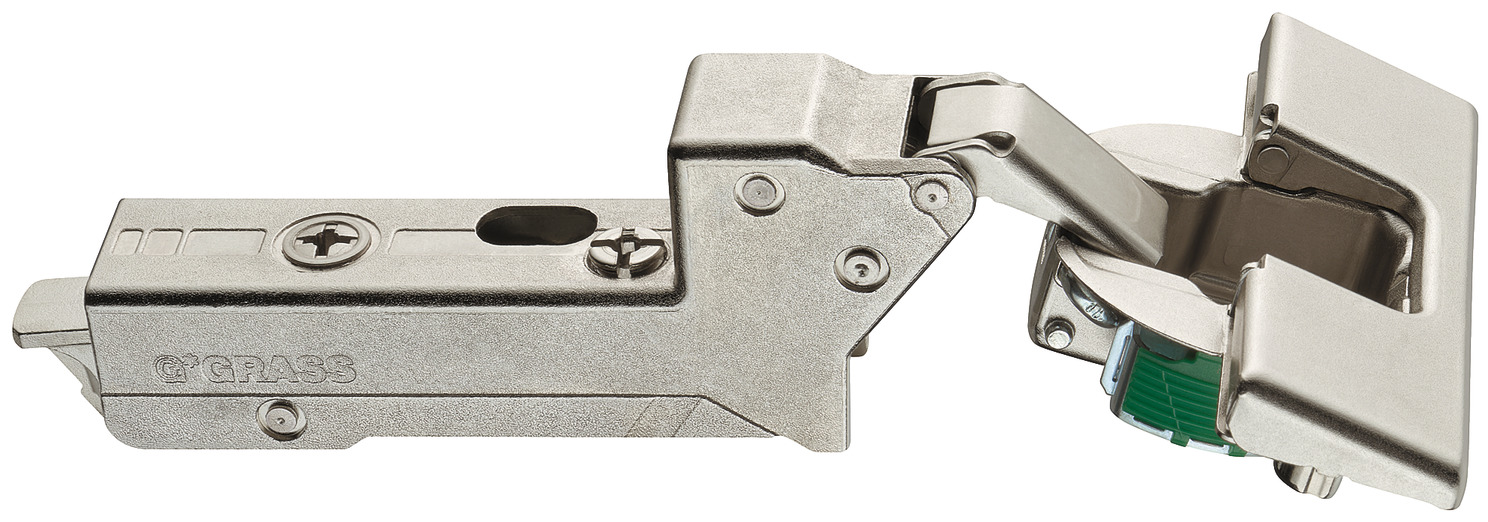

Concealed Hinge, Grass TIOMOS, 110 Opening Angle, Inset Mounting
for standard applications, Soft-close, Impresso, model F017139417228
optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm with automatic opening mechanism for convenient opening of front panels without handles Optimum gap dimensions with door thickness of up to 24 mm

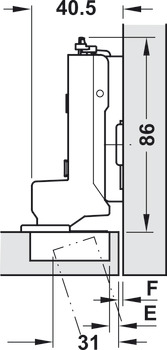

Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2 mm.
Set back mounting plate screw-on position by door thickness +1.5 mm.
- Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,6 0,6 0,6 0,6 0,6 17 0,6 0,6 0,6 0,6 0,6 18 0,7 0,7 0,7 0,7 0,7 19 0,9 0,9 0,9 0,9 0,9 20 1,1 1,1 1,1 1,1 1,1 21 1,4 1,3 1,3 1,3 1,3 22 1,6 1,6 1,6 1,5 1,5 24 2,4 2,1 2,1 2,1 2,0 Minimum gap F
- Door overlay mm -4 -3 -2 -1 0 3 4 0 3 4 5 6 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm
Attributes
Ship via: Can Ship UPS
Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate
Area of application: for standard applications
Color/finish: nickel plated

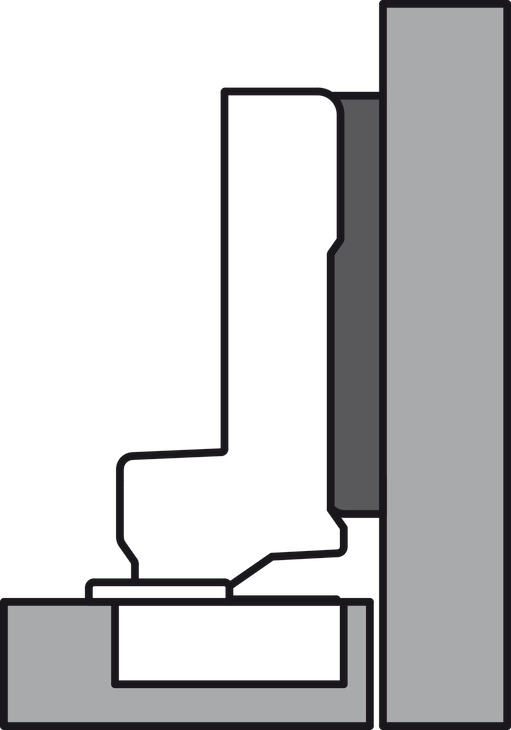

Concealed hinge version: inset
Crank type: High Cranked
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35.00 mm
Cup fixing: For mounting in drilled hole, without tools
Door processing for assembly: with cup drilling

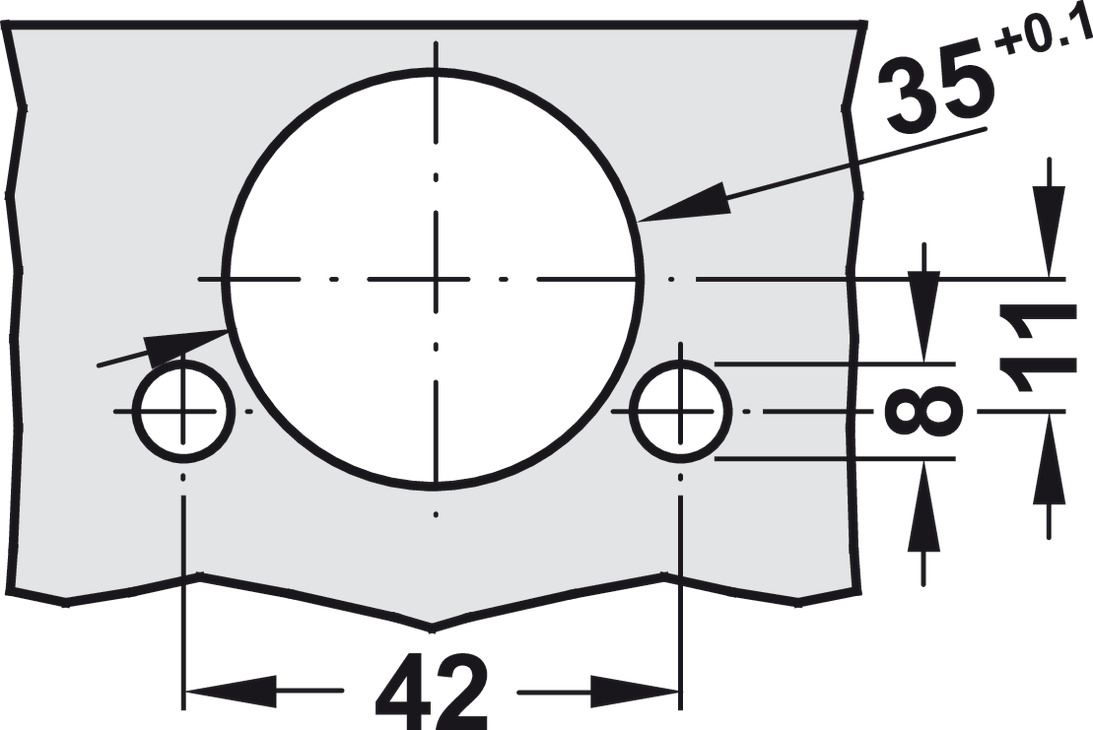

Drilling pattern: 4-2/11
For door material: wood

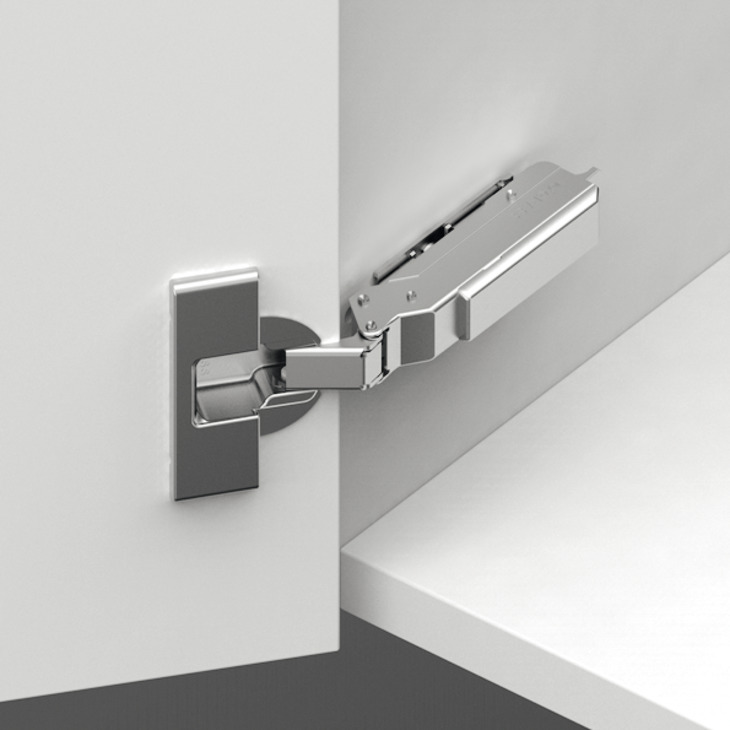

Installation: Door on cabinet without tools with clip system
Installation reference: Set back mounting plate screw-on position by door thickness +1.5 mm.
Lock function: With automatic closing spring, With soft closing mechanism
Material: Cup: Steel, Hinge arm: Zinc alloy
Opening angle: 110°
