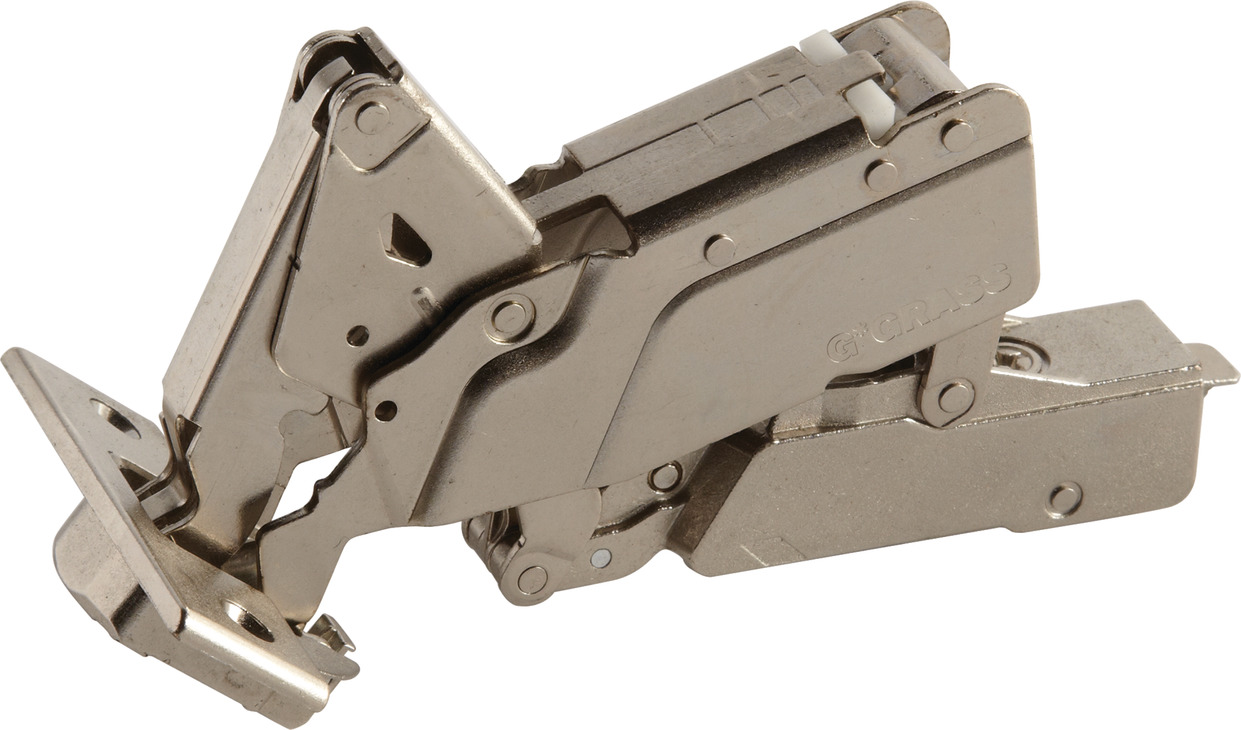

Hafele 348.32.601 Grass Tiomos 155 Concealed Hinge, Full Overlay MountingHafele 348.32.601 Concealed Hinge, Grass Tiomos 155 is designed for seamless integration into cabinets with internal drawer boxes or pull-out shelves. This full overlay hinge features a self-close mechanism, ensuring doors close smoothly and securely. The hinge arm incorporates an optional integrated 3-way adjustable soft closing mechanism, offering flexibility and precision during installation. With a shallow cup depth of just 10 mm, the hinge allows for a surrounding mitre joint connection, ensuring a clean and elegant finish. The zero offset design accommodates internal pull-outs or extending trays, making it a versatile solution for various cabinet styles. Installation is straightforward, utilizing a tool-free clip system for quick door attachment. The hinge supports a wide range of door thicknesses, requiring no minimum gap up to 28 mm and recommending trial mounting for doors thicker than 29 mm. Crafted from durable materials, including a zinc alloy cup and steel hinge arm, this hinge provides both strength and longevity. Its nickel-plated finish adds a touch of sophistication while resisting wear. Overall, the Hafele 348.32.601 is a reliable choice for professionals and homeowners seeking quality and functionality in cabinet hardware.

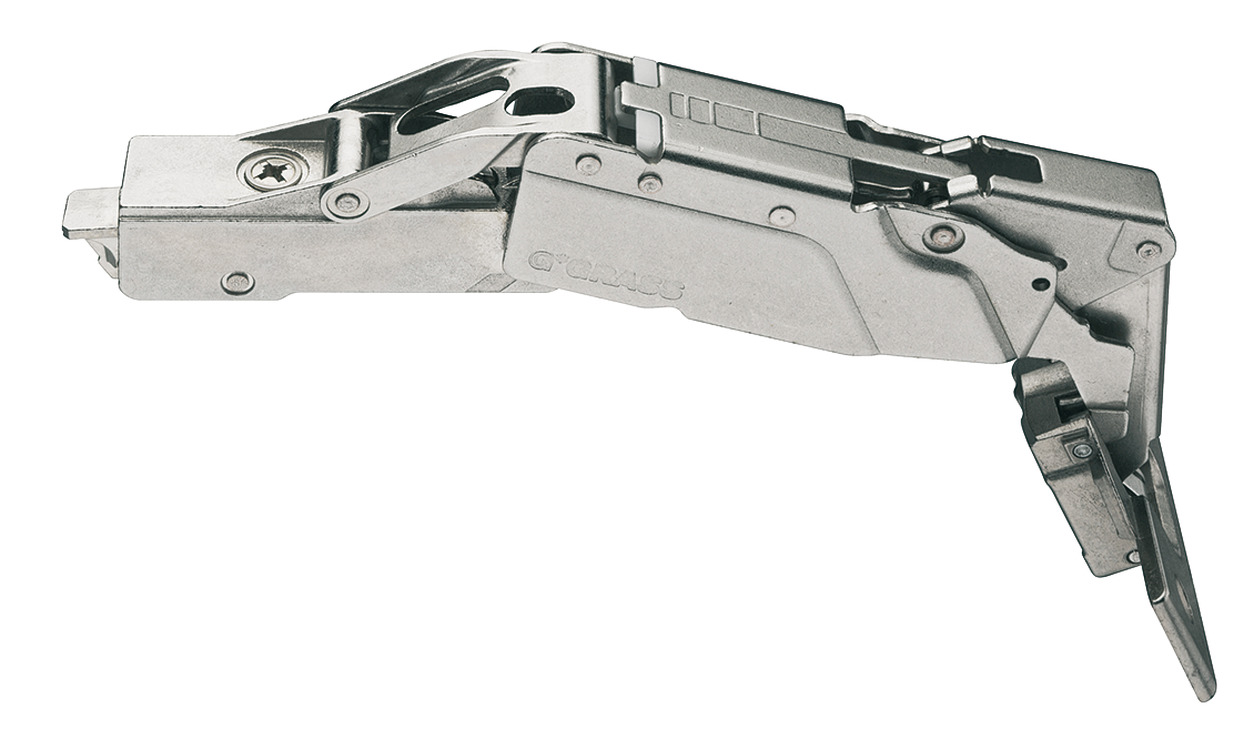

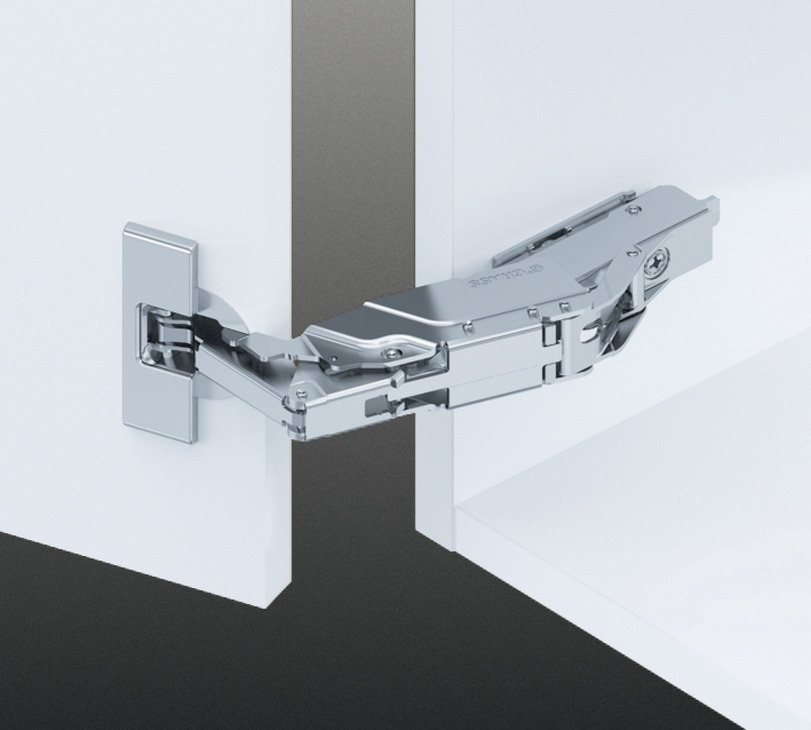

Concealed Hinge, Grass Tiomos 155, full overlay mounting
for cabinets with internal drawer boxes with railing or pull-out shelves, Self-close, screw-on, model F045138500217
optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm Zero offset for use with internal pull outs or extending trays Shallow cup depth of 10 mm surrounding mitre joint connection possible

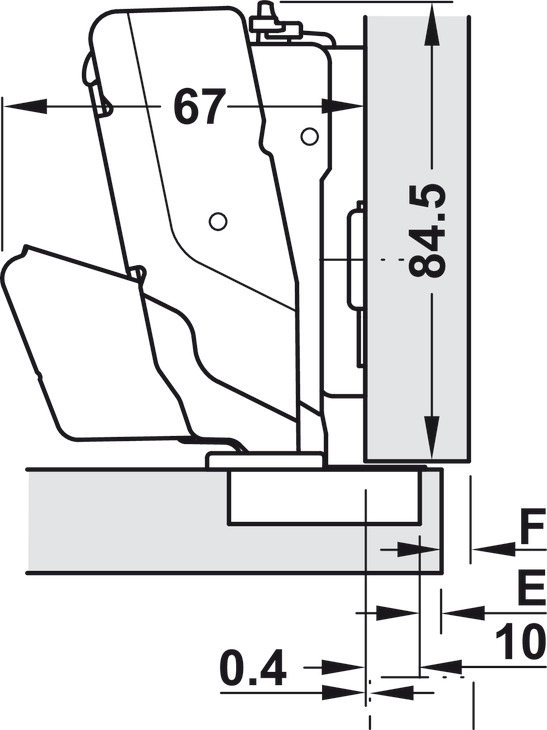

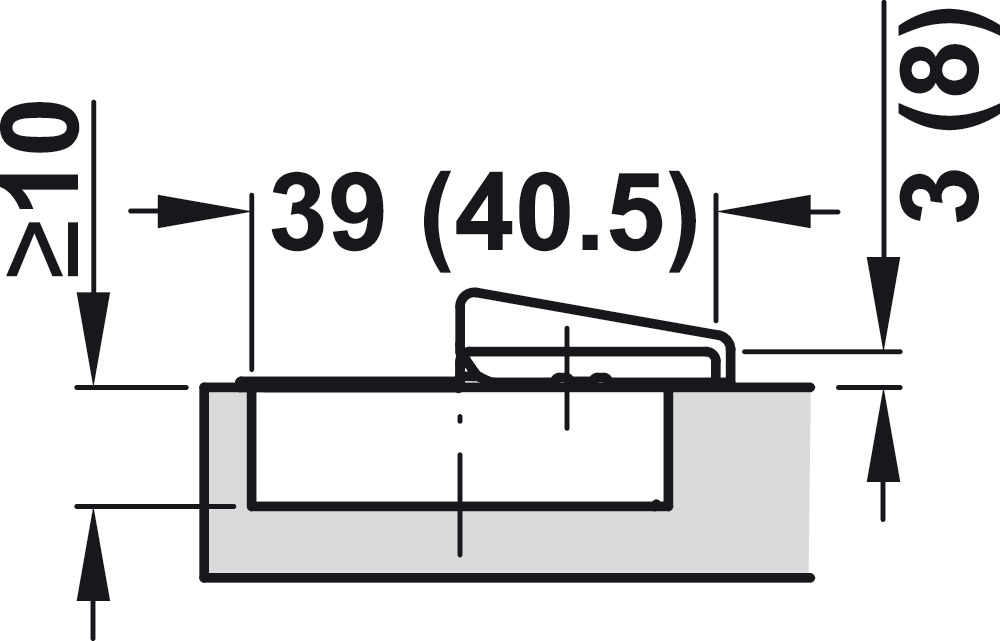

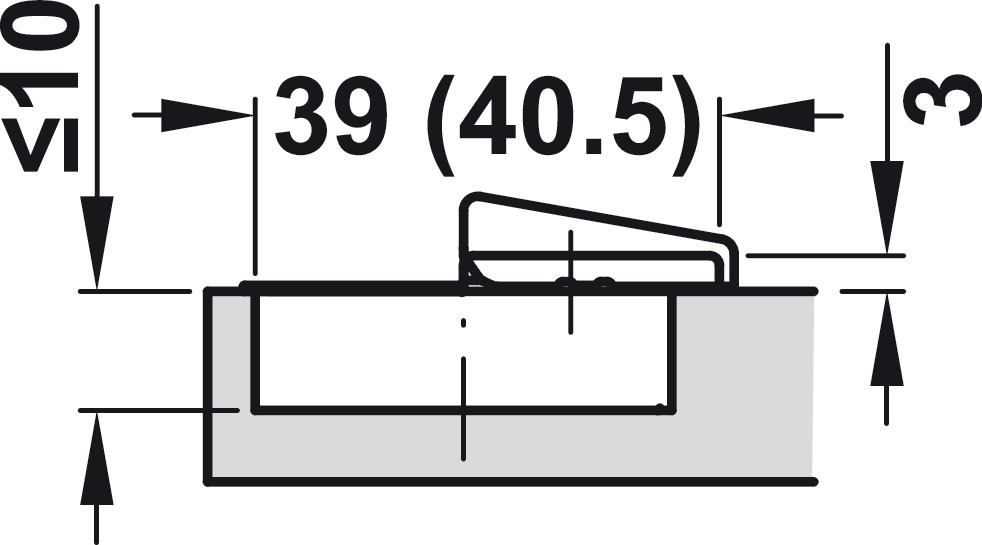

Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2 mm. For inset mounting use 19 mm mounting plate. Set mounting plate back by door thickness + 1.5 mm.
The dimensions in the drawings are calculated with a mounting plate, distance 2 mm. No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.
- Door overlay mm 12 13 14 15 16 17 18 19 20 21 22 3 4 5 6 7 8 -2 3 4 5 6 7 8 0 3 4 5 6 7 8 2 3 4 5 6 7 8 3 Distance to cup E mm Mounting plate distance mm
Attributes
Ship via: Can Ship UPS
Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate
Area of application: for cabinets with internal pull outs or extending trays
Color/finish: nickel plated

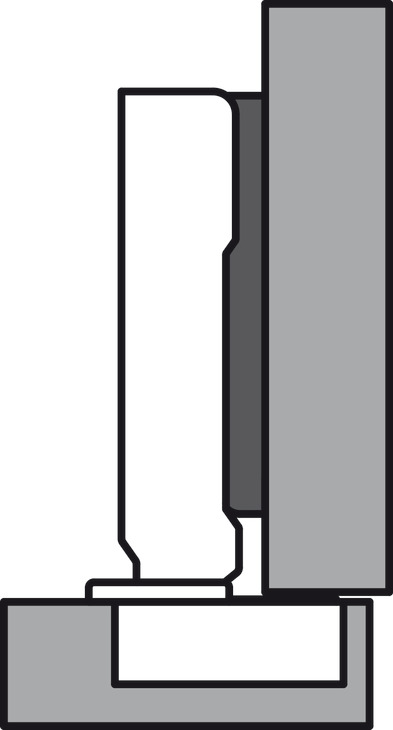

Concealed hinge version: full overlay
Crank type: Straight

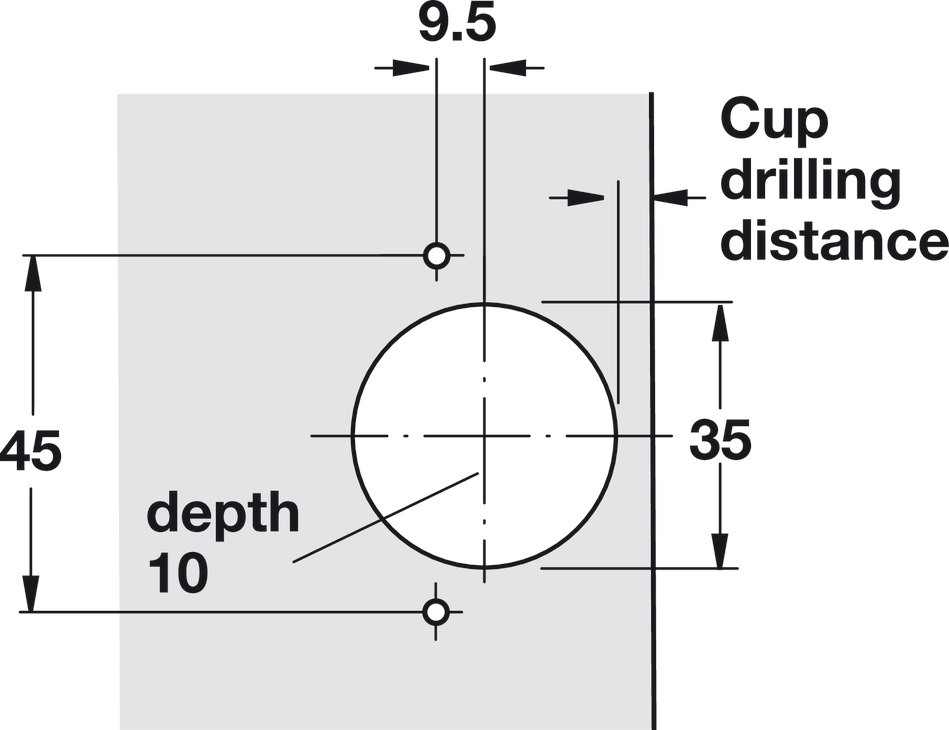

Cup drilling depth: 10.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Door processing for assembly: with cup drilling
Drilling depth: Shallow cup: 3/8"

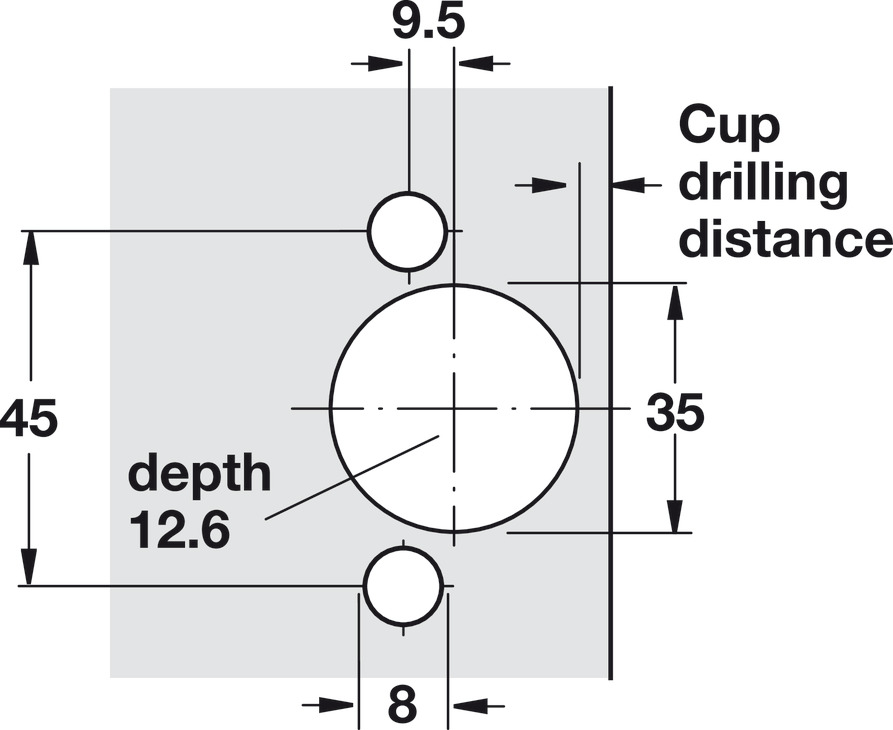

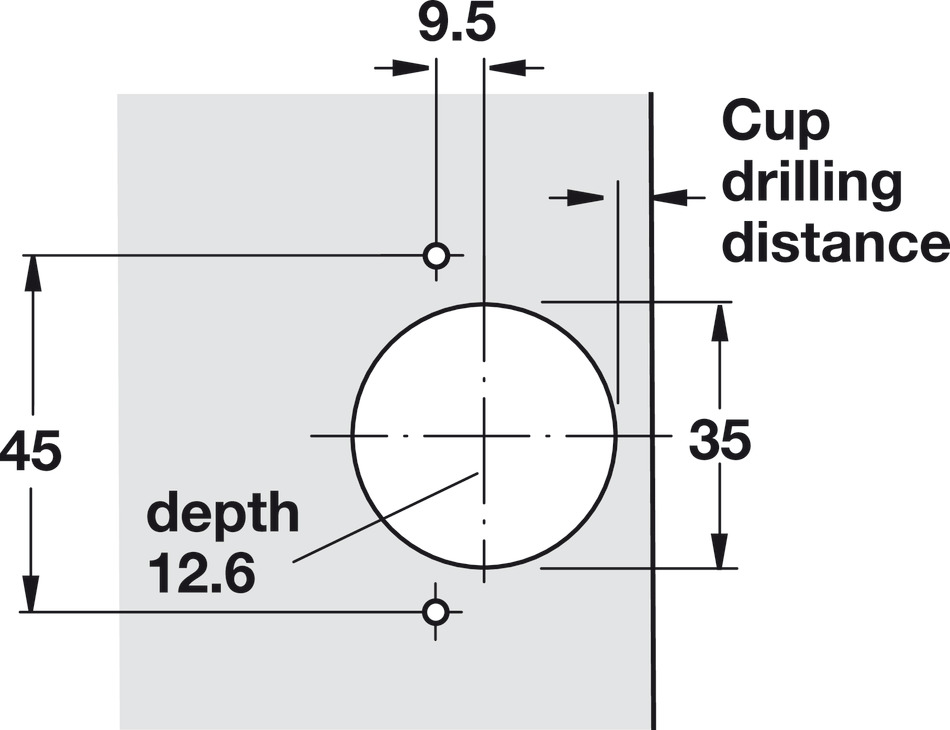

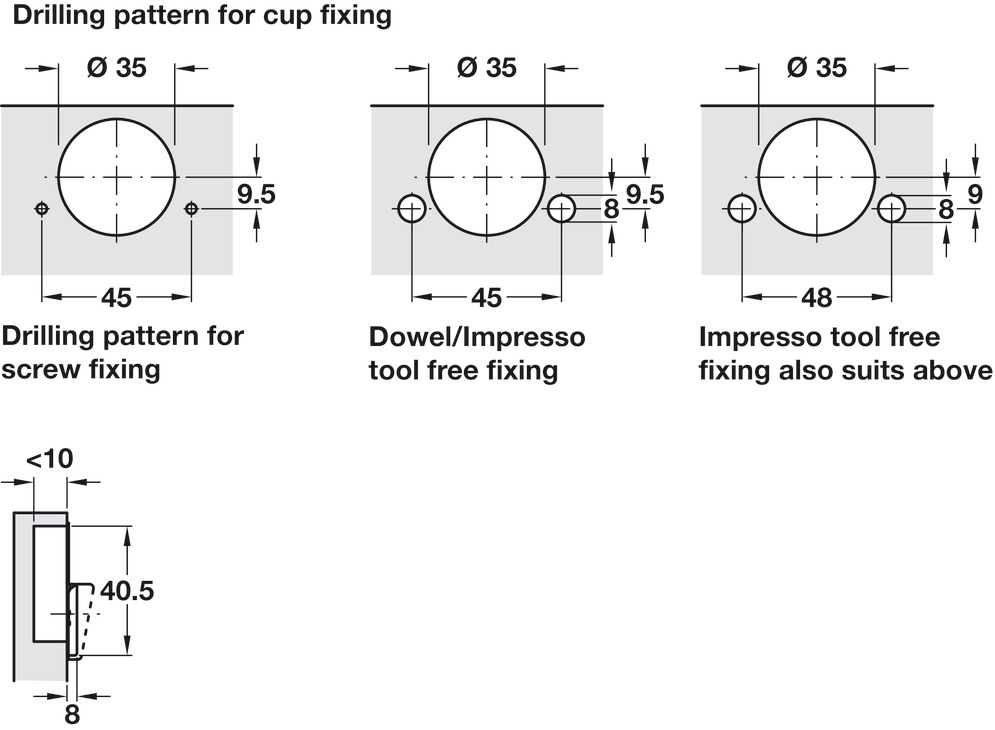

Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet without tools with clip system
Lock function: Without soft closing mechanism
Material: Cup: Zinc alloy, Hinge arm: Steel
Model No.: F045138500217
Opening angle: 155°
