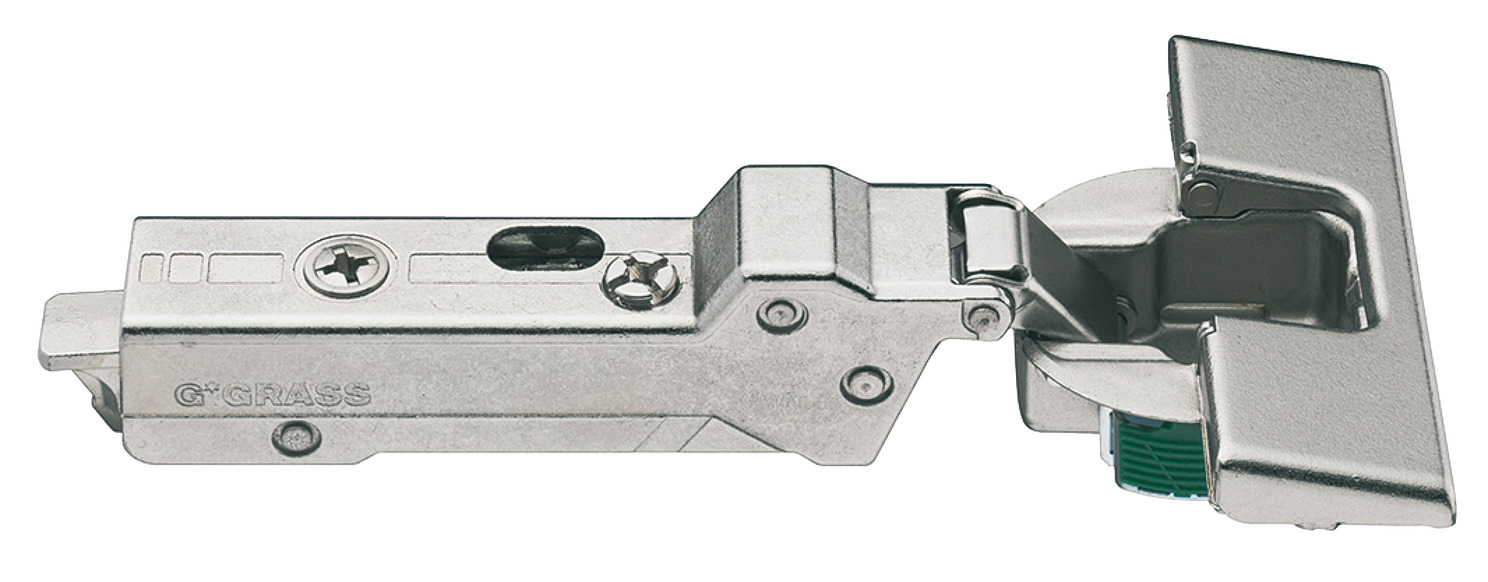

Hafele 348.34.812 Grass TIOMOS Concealed Hinge, 94 Opening Angle, Half OverlayHafele 348.34.812 Concealed Hinge, Grass TIOMOS, is designed for thick and profile doors up to 36 mm, making it an ideal choice for various cabinetry applications. This hinge features a 94° opening angle and a half overlay design, allowing for seamless integration into your furniture while maintaining an aesthetically pleasing look. Engineered with a press-fit mechanism, it includes a soft-close feature that ensures doors close gently, enhancing both safety and convenience. The hinge accommodates door overlays exceeding 24 mm, and offers side adjustments of ±2 mm, providing versatility for precise alignment. Crafted from durable materials, the cup is made of steel while the hinge arm is constructed from zinc alloy, promising long-lasting performance. With a cup drilling depth of 12.60 mm and a diameter of 35.00 mm, installation is straightforward when using cup drilling techniques. The nickel-plated finish adds a touch of sophistication, making it suitable for modern and traditional designs alike. This concealed hinge is not only practical but also maintains a clean visual line, ensuring that your furniture maintains its elegance. Perfect for building professionals and knowledgeable homeowners, the Hafele 348.34.812 is a reliable choice for enhancing any cabinetry project.

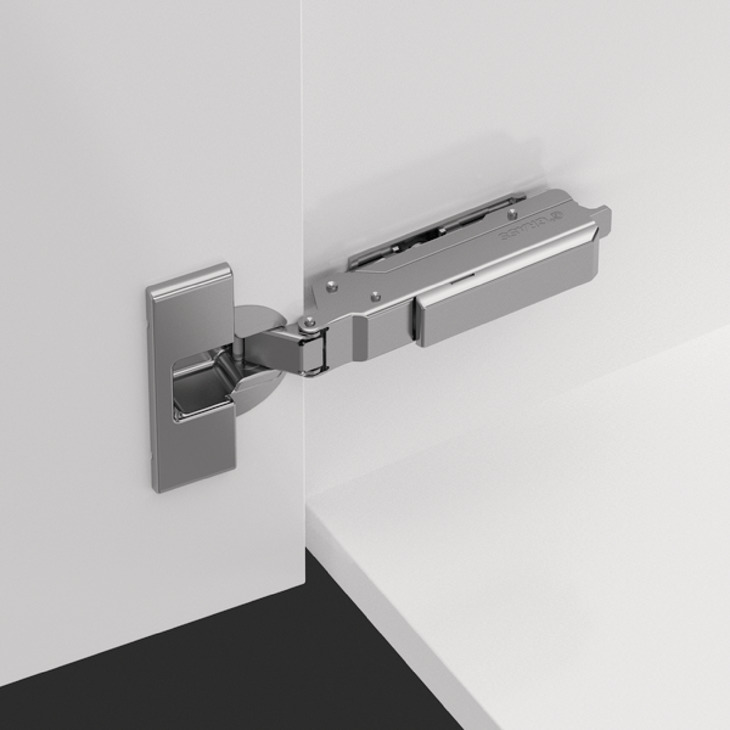

Concealed Hinge, Grass TIOMOS, 94 Opening Angle, Half Overlay
for thick doors and profile doors up to 36 mm, Press-fit, soft-close, model F028138573228

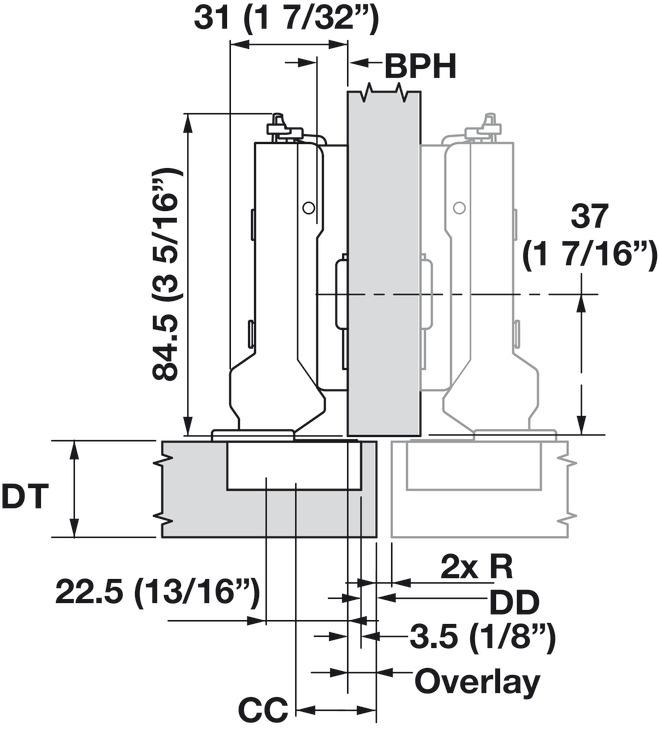

Door overlay over 24mm possible, with side adjustments by ±2 mm.
- Door overlay mm 5,5 6,5 7,5 8,5 9,5 10,5 11,5 12,5 13,5 14,5 3 4 5 6 7 -2 3 4 5 6 7 0 3 4 5 6 7 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm

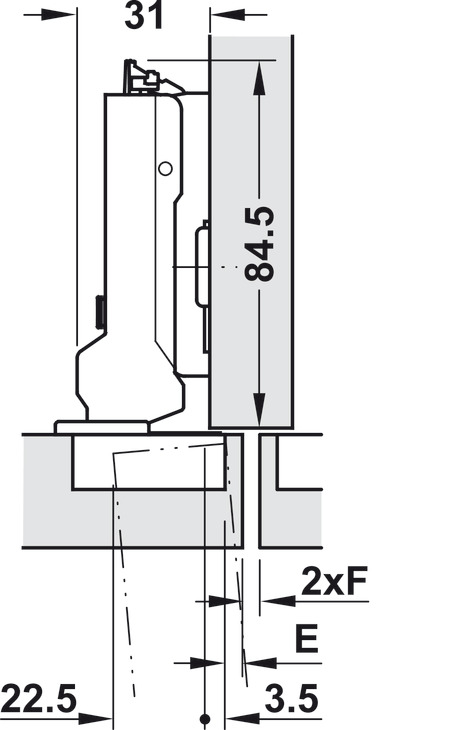

- Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,2 0,2 0,2 0,2 0,2 18 0,2 0,2 0,2 0,2 0,2 20 0,3 0,3 0,3 0,3 0,3 22 0,5 0,5 0,5 0,5 0,5 24 0,6 0,6 0,6 0,6 0,6 26 1,0 1,0 1,0 1,0 1,0 28 2,0 1,5 1,5 1,3 1,3 30 4,5 3,5 2,5 2,5 1,5 36 10,6 9,6 8,6 7,6 6,7 Minimum gap F
Attributes
Ship via: Can Ship UPS
Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate
Area of application: For thick doors
Color/finish: nickel plated
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked

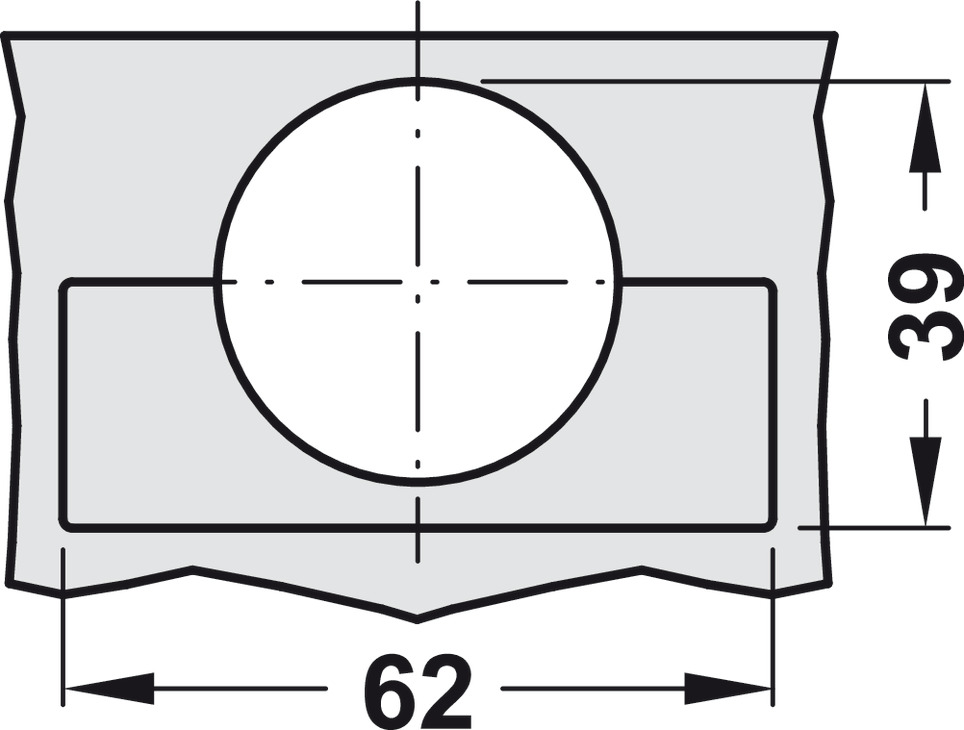

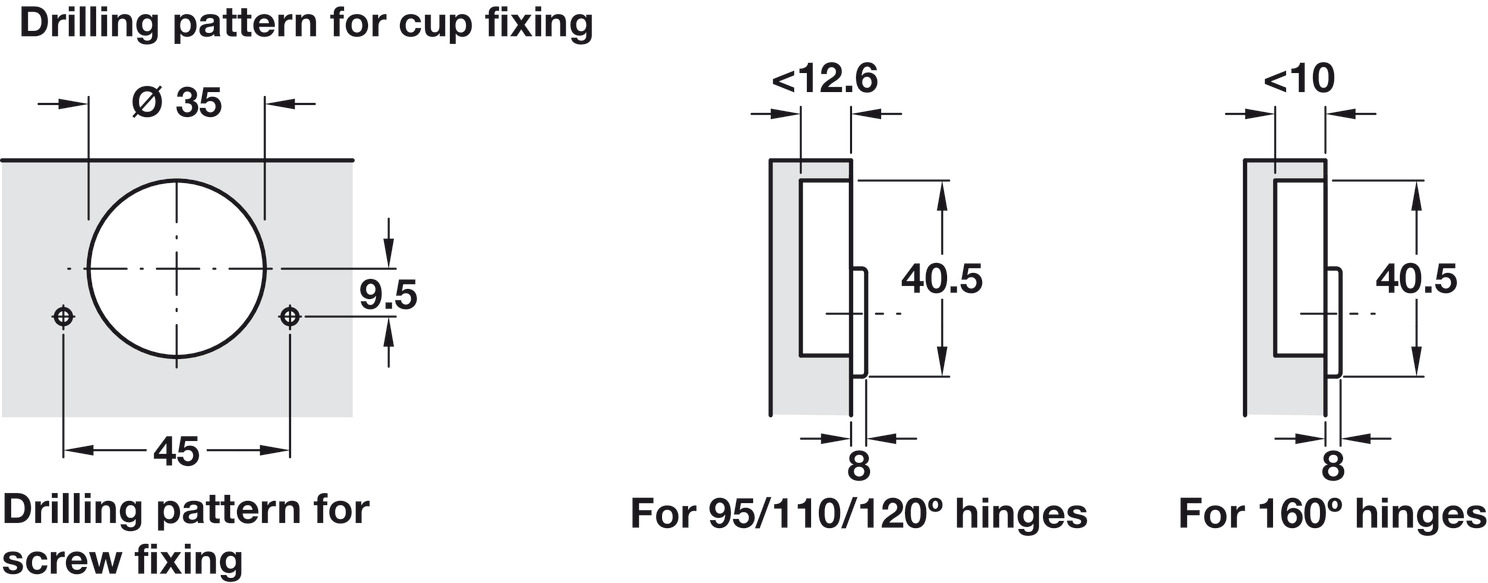

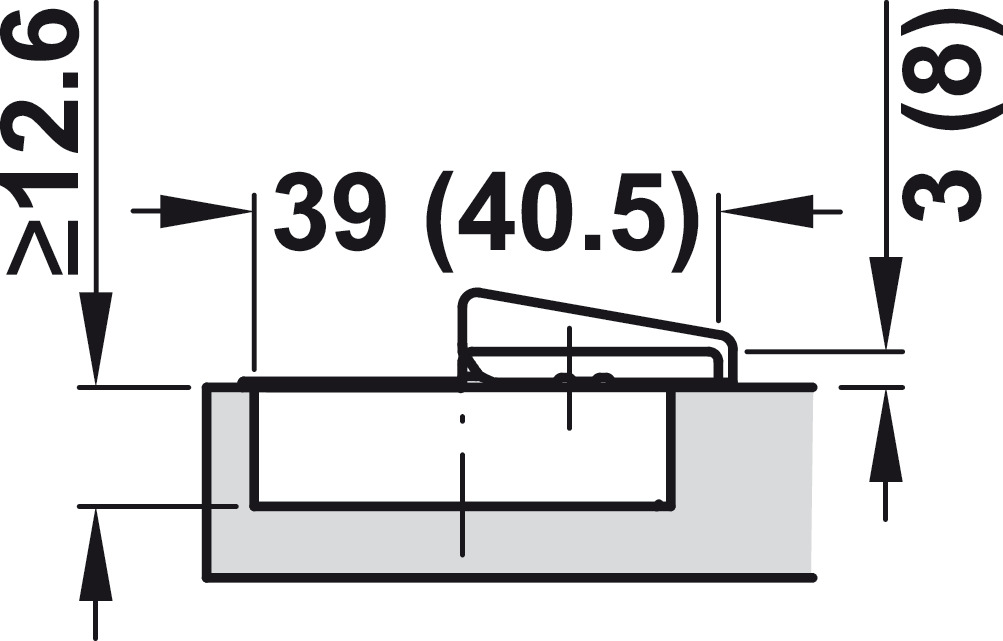

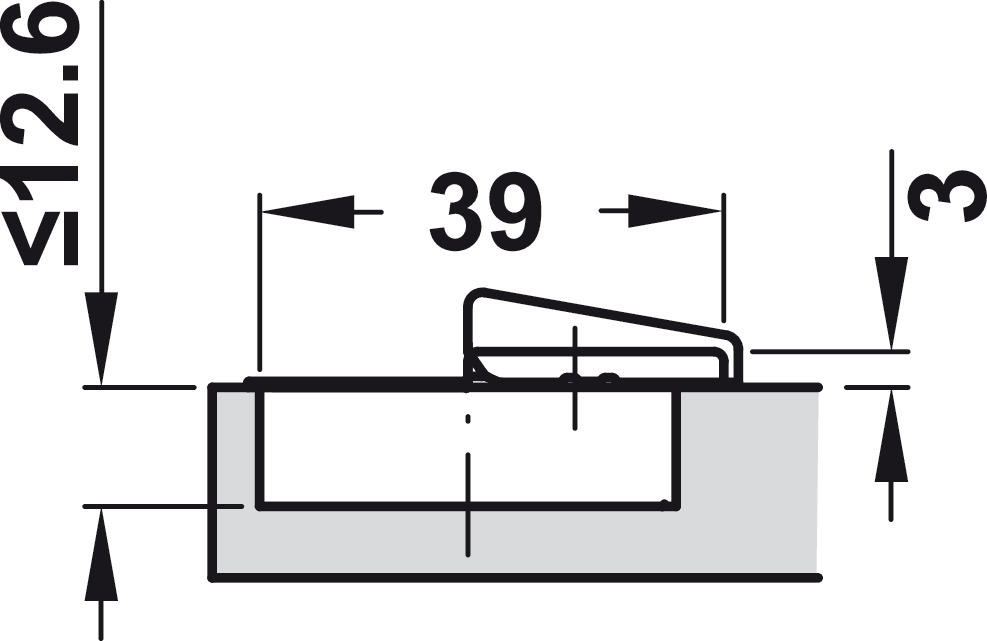

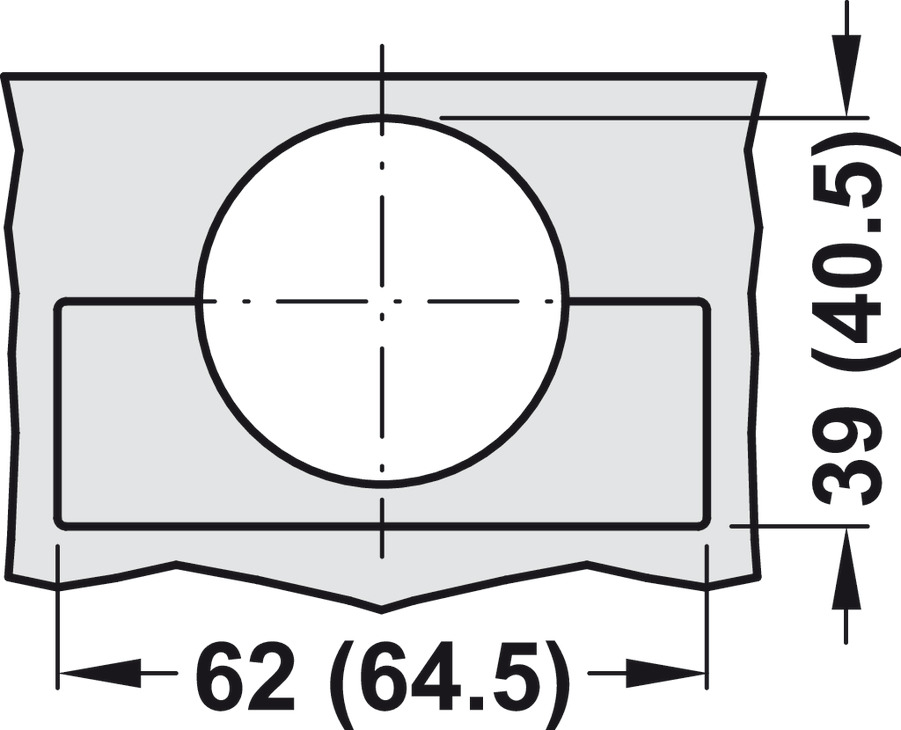

Cup drilling depth: 12.60 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling
For door material: wood
Material: Cup: Steel, Hinge arm: Zinc alloy
Model No.: F028138573228
Opening angle: 95°
