Hafele 354.15.911 Connecting hinge, cranked with fixed steel pin is expertly designed for folding sliding doors, ensuring both functionality and durability. Crafted from galvanized steel, this hinge features a zinc-plated finish that not only provides a sleek appearance but also enhances corrosion resistance, making it ideal for various applications. With a flange thickness of 1.20 mm and a rounded flange shape, the hinge offers a robust yet unobtrusive profile. It measures 50.00 mm in length and total width, accommodating various door configurations. The knuckle diameter of 5.50 mm contributes to the overall strength and stability of the connection. Installation is straightforward with the hinge designed for screw fixing and featuring four drill holes for secure mounting. It can be mounted on either the left or right side, providing flexibility to meet specific project requirements. Additionally, the hinge incorporates a plastic friction bearing, enhancing smooth operation and longevity. Hafele 354.15.911 Connecting hinge is an essential component for seamless folding door systems, ensuring reliable performance while maintaining a polished look. Its combination of quality materials and thoughtful design makes it a trustworthy choice for both building professionals and discerning homeowners.

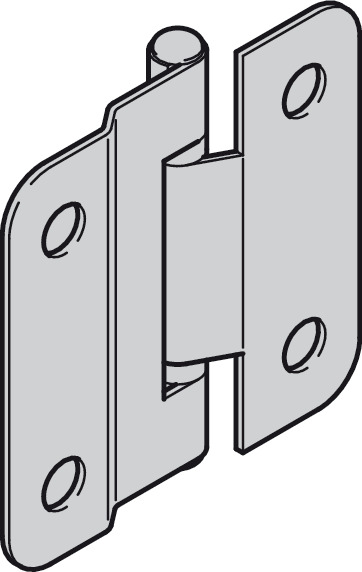

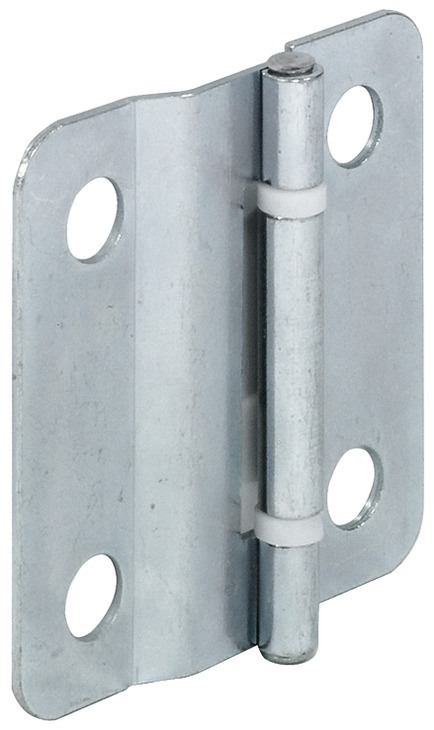

Connecting hinge, cranked with fixed steel pin
Slido Fold VF, steel, galvanized
Ship via: Can Ship UPS

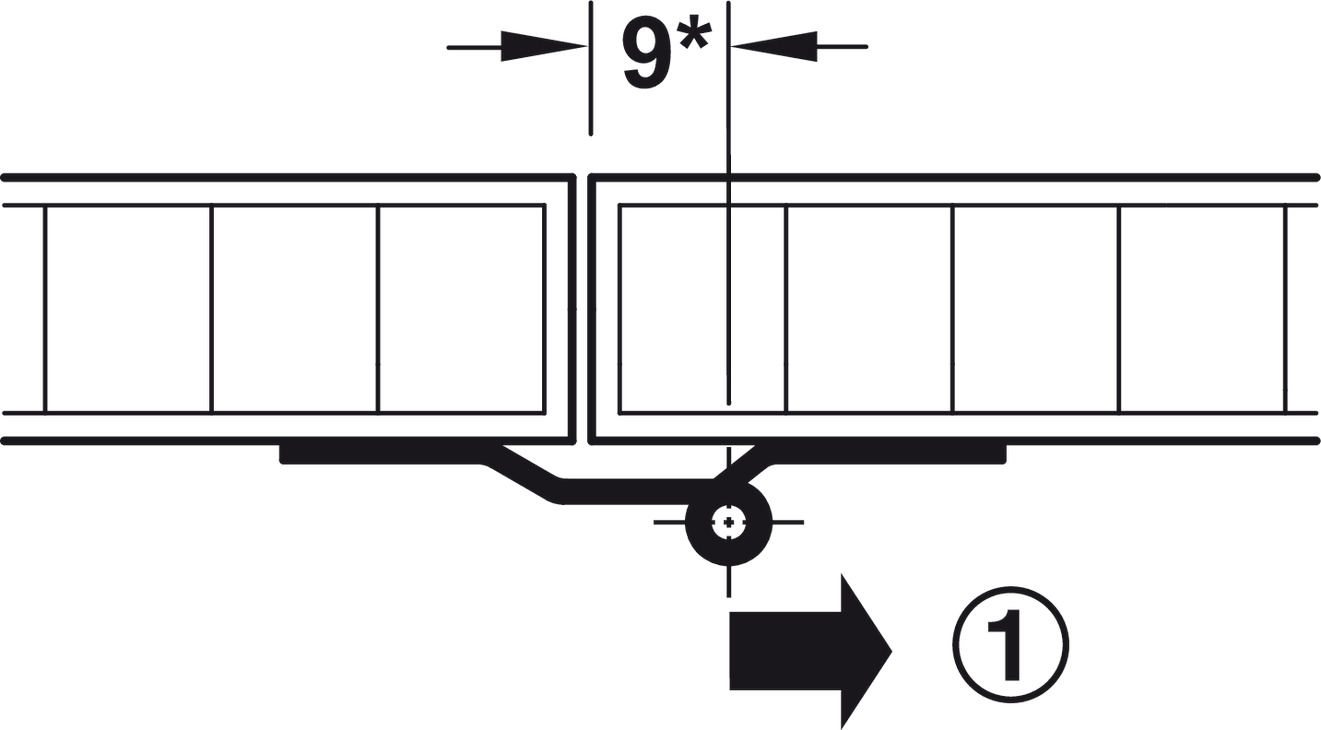

Area of application: For folding sliding doors
Color/finish: zinc plated
Flange shape: rounded

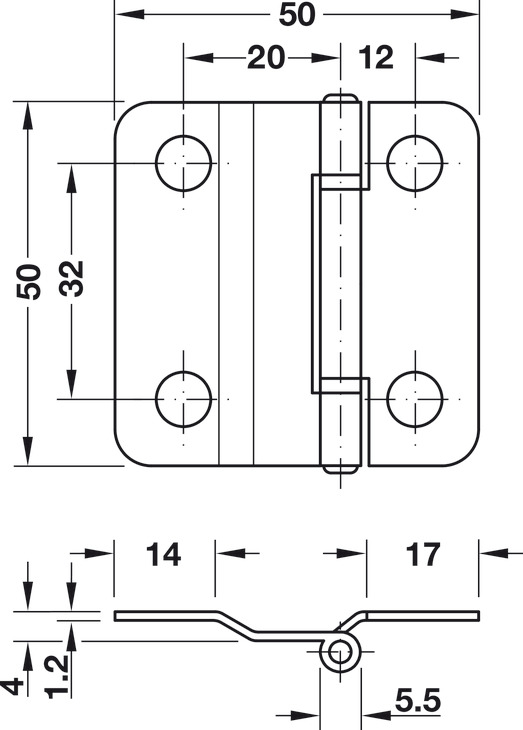

Flange thickness: 1.20 mm
Installation: For screw fixing
Knuckle diameter: 5.50 mm
Length: 50.00 mm
Material: Steel Plastic friction bearing
Mounting: left or right
Number of drill holes: 4.00
Product type: Connecting hinge
Total width: 50.00 mm
Version: fixed, with riveted pin
