Hafele 833.94.209 Hafele Loox5 Profile 1107 for Recess Mounting LED Strips up to 5mmHafele 833.94.209 Profile for Recess Mounting is designed to seamlessly integrate LED strip lights up to 5 mm in width, providing an elegant solution for illuminating your spaces. With a length of 92 inches (2,336 mm) and an asymmetrical light distribution, this profile is ideal for vertical installation in closets, enhancing visibility while maintaining a sleek aesthetic. Crafted from durable anodized aluminum with an opal white diffuser, the profile ensures a uniform light output without visible points, thanks to its 120 LEDs per meter. This discreet lighting option allows for effective illumination in various applications, while the light permeability of 60–70% offers a soft, inviting glow. Installation is straightforward; the profile features routing dimensions of 23.5 mm in width and 11 mm in depth, allowing for easy recessing. It is essential to ensure the surface is clean, grease-free, and dust-free before bonding the LED strip lights to the profile. The product includes one aluminum profile and one opal white diffuser, while alternative diffusers in black or transparent can be ordered separately for added versatility. The Hafele 833.94.209 Profile is an excellent choice for those seeking both practicality and elegance in their lighting solutions.

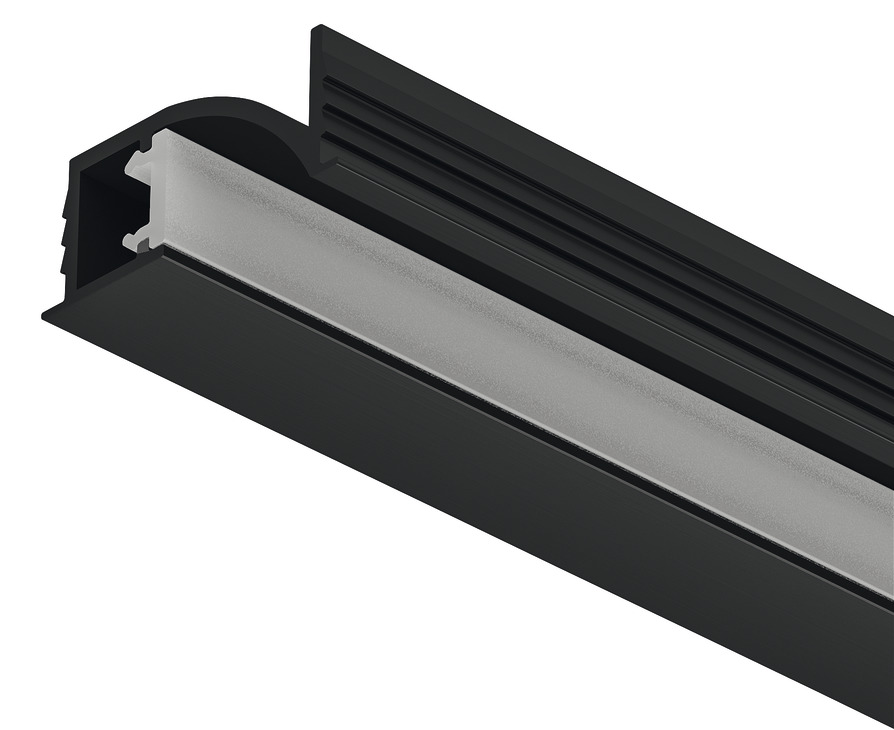

Profile for Recess Mounting, Hafele Loox5 Profile 1107 for LED strip lights up to max. 5 mm (3/16") width
Asymmetrical light distribution, Length: (92") 2336 mm, black

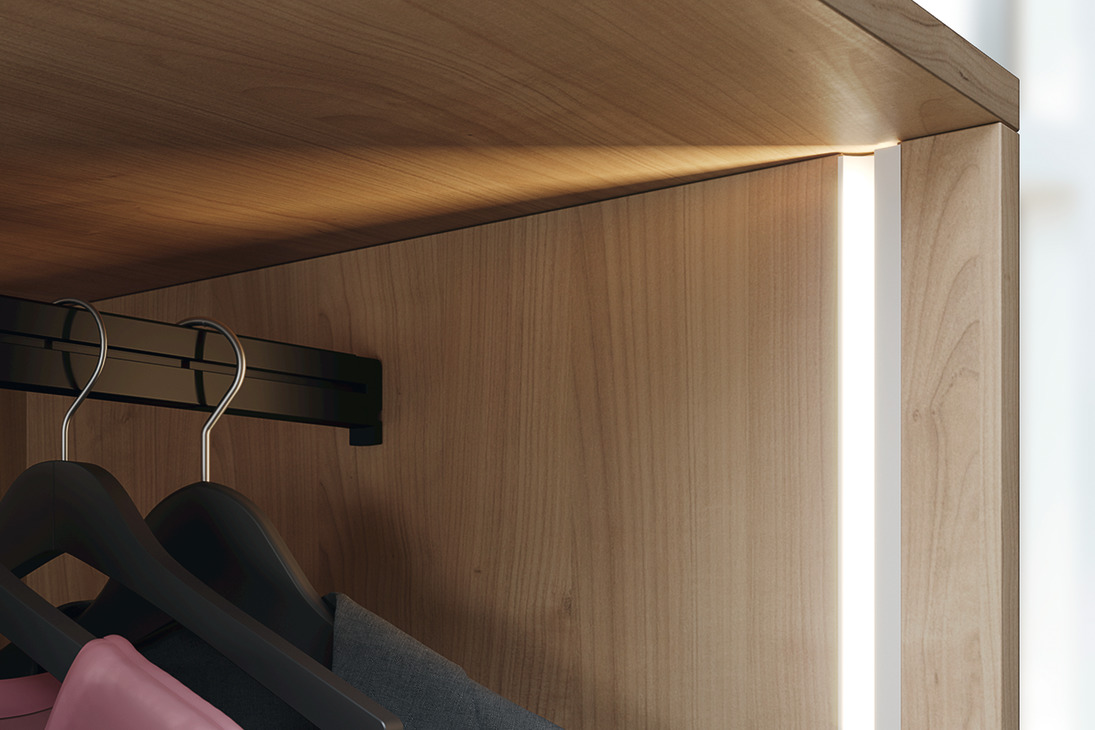

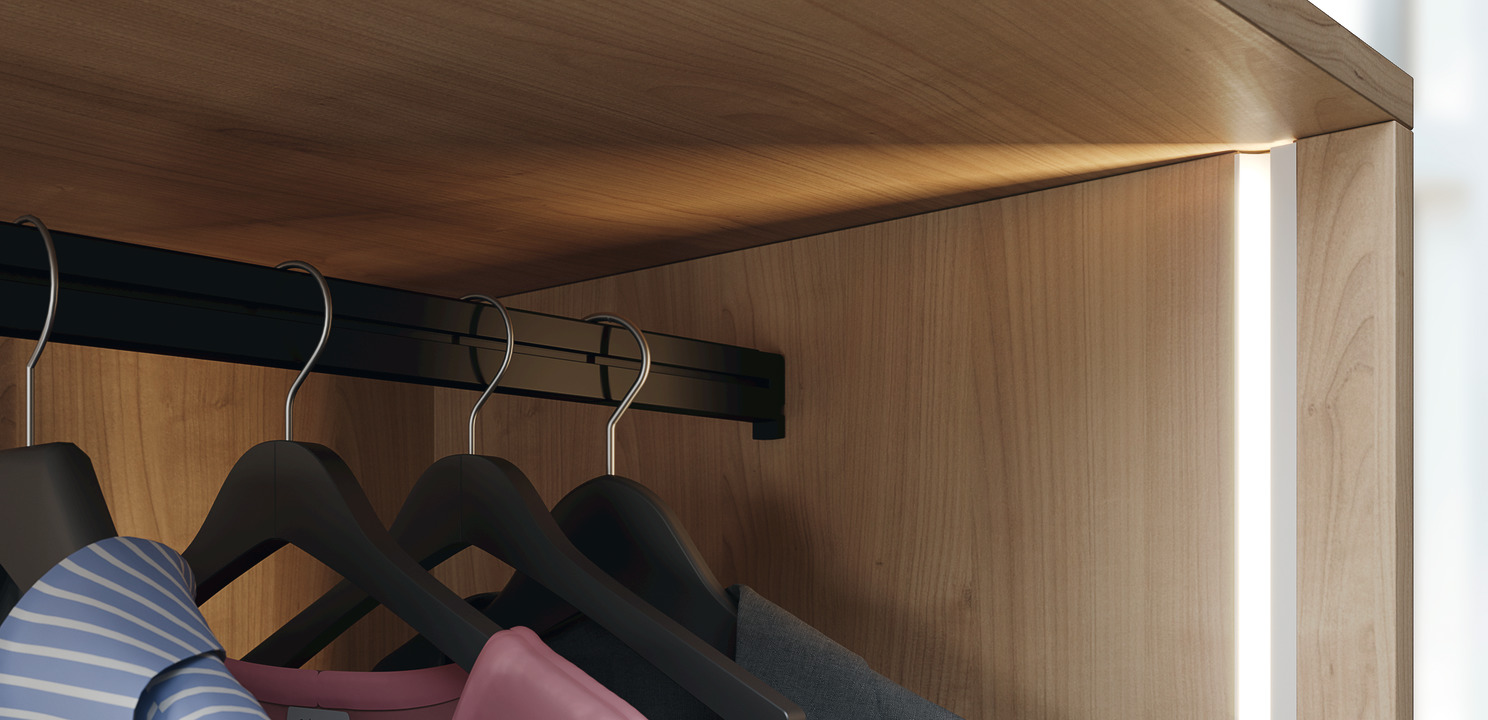

Angled light, ideal for vertical installation in closets

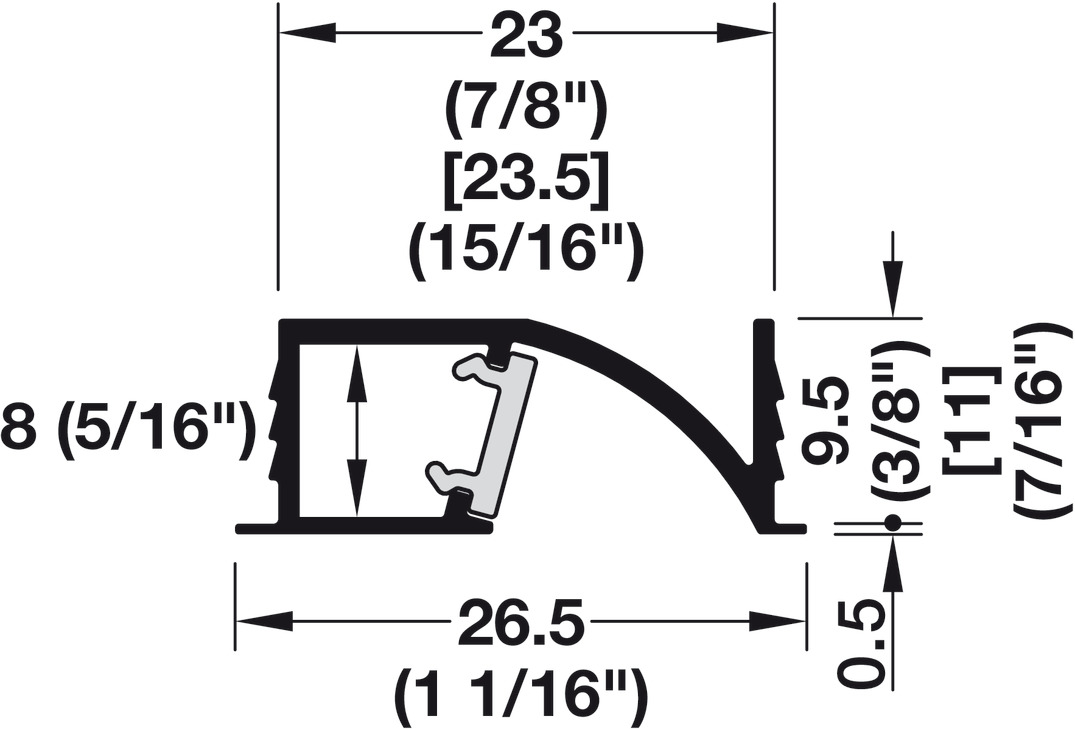

Routing dimensions W x D: 23.5 x 11 mm (15/16" x 7/16")
Slide-in 7 mm wide clips from the side before installing the profile. The surface on the aluminum profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free! Routing dimensions are for reference only. Furniture construction may affect dimensions. Diffuser The opal white diffuser creates a uniform light without points from 120 LEDs/ m. Points are visible with black version. If required, please order alternative diffusers in black or transparent separately.
Attributes
Ship via: Can Ship UPS
Color/finish: Profile: Black, anodizedDiffuser: opal white
Installation: For recessing
Internal width: 5.00 mm
Length: 2,336.00 mm
Length (inch): 92"
Light permeability: 60 – 70 %
Material: Profile: Aluminum, Diffuser: Polycarbonate
Order reference: Please order profile tool 833.72.799 for push fitting the LED strip light separately.
Routing depth: 23.50 mm
Routing width: 11.00 mm
Supplied with: 1 aluminum profile 1 diffuser opal white
Width (inch): Diffuser: 3/16"
