Hafele 924.19.552 TECTUS TE 640 3D A8 Concealed HingeHafele 924.19.552 Concealed Hinge, TECTUS TE 640 3D A8 seamlessly combines functionality and aesthetic appeal in a robust design. Crafted for flush doors, this hinge is perfect for door frames made of hollow metal, wood, or aluminum, accommodating door thicknesses of 40 mm or more. With a maximum door weight capacity of 352 lbs, it ensures durability and reliability, making it suitable for both residential and commercial applications. This hinge features a striking dark bronze finish, adding a touch of elegance to any door. Its innovative 3D adjustment facility allows for precise alignment, including side adjustment of 3 mm, height adjustments from -3 to 3 mm, and closing pressure fine-tuning within ±1 mm. The hinge supports an impressive opening angle of 180 degrees, enhancing accessibility and ease of use. Designed for both DIN left and DIN right-hand applications, the Hafele 924.19.552 is compatible with a maximum door size of 4 x 8 feet for single doors and 8 x 8 feet for pairs. Additionally, it is equipped with maintenance-free slide bearings, ensuring long-lasting performance. Certified in compliance with EN 1935:2002, this hinge is a dependable choice for discerning builders and homeowners alike.
Concealed Hinge, TECTUS TE 640 3D A8
concealed, 3D adjustable, size 240 mm, Bronze finish dark
Attributes
Ship via: Can Ship UPS
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

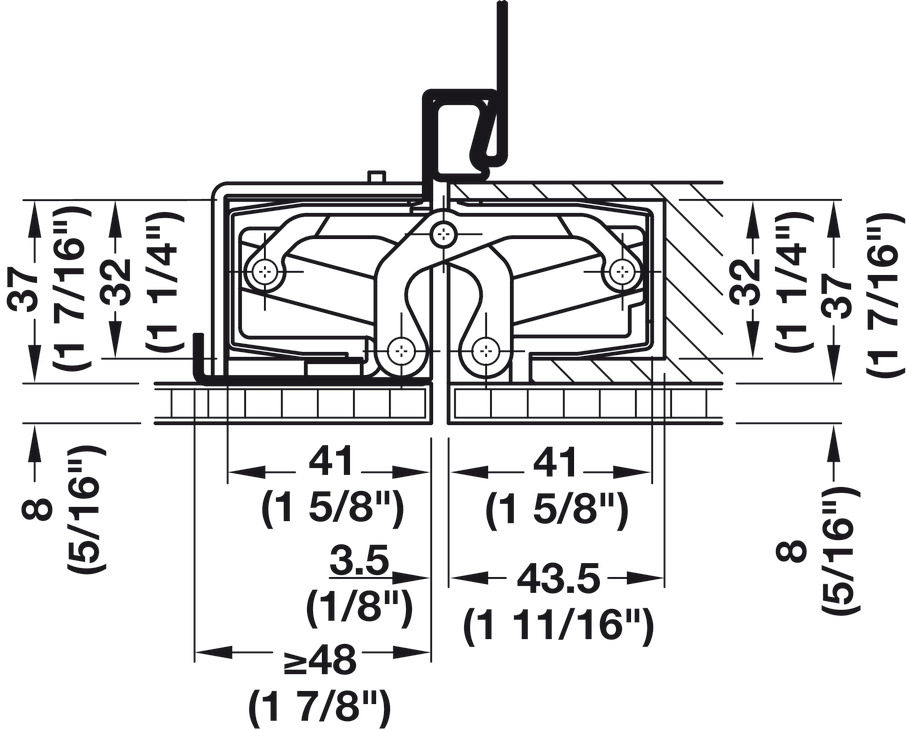

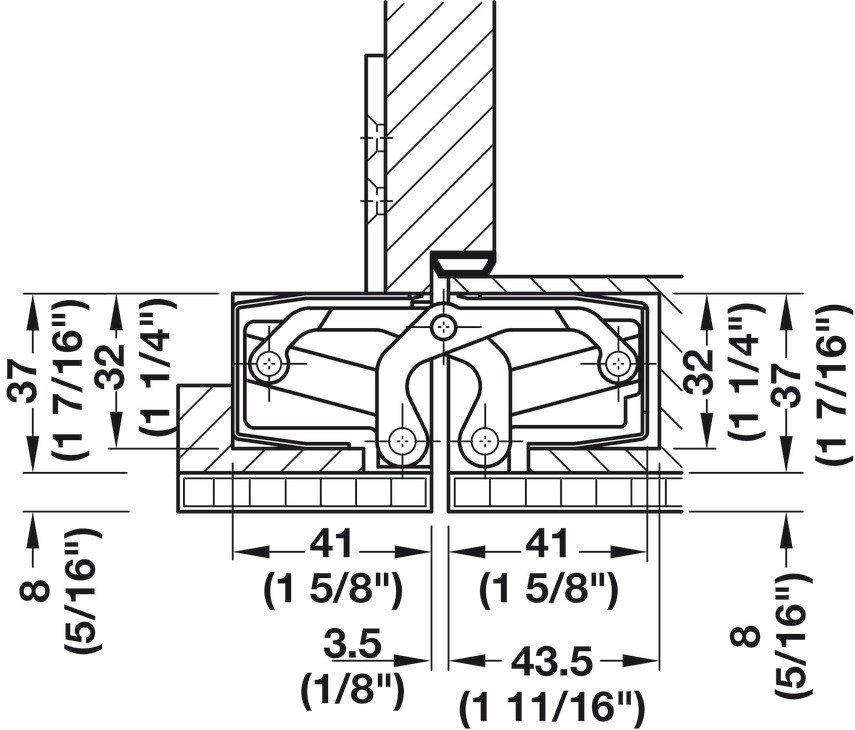

Area of application: Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16") thick surface applied panel Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors
Color/finish: Bronze colored, oiled, dark
Door thickness: ≥40 mm
Door thickness min.: 1 9/16"
Door weight max.: 352 lbs

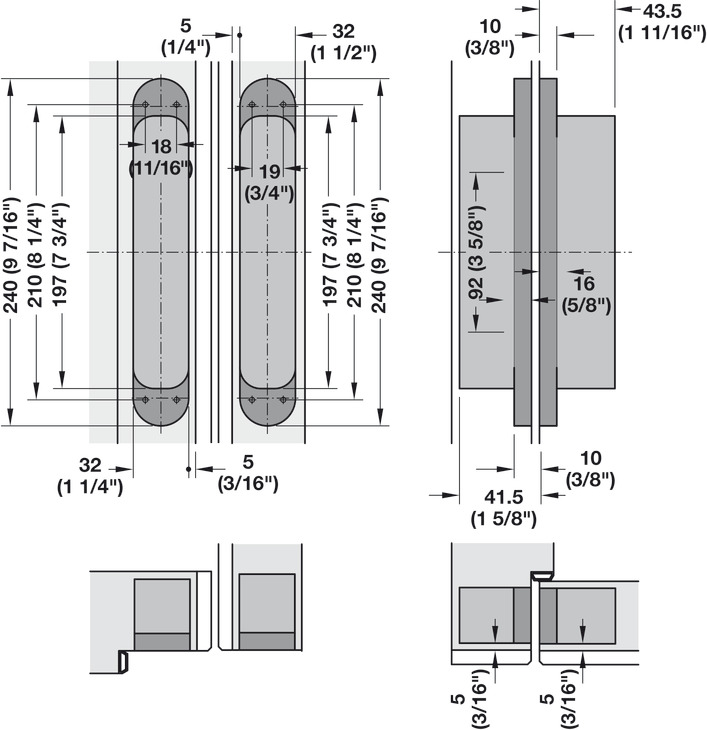

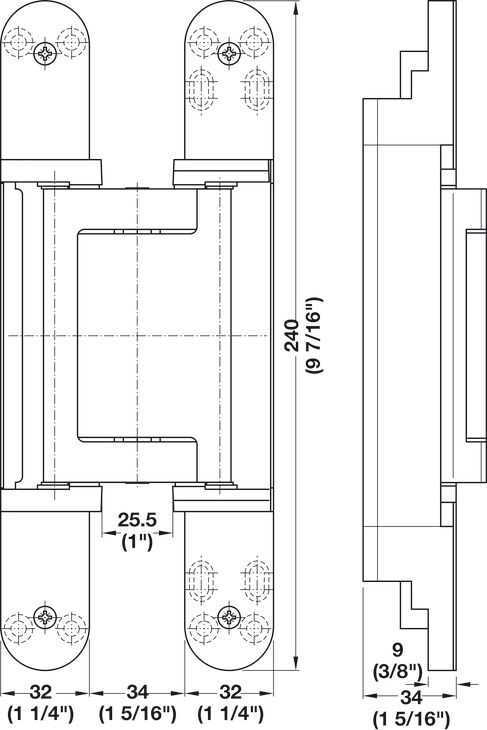

Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|7|1|1|0|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 160.00 kg
Model: 176
Model series: TECTUS TE 640 3D A8
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
