Hafele 940.42.077 Slido D-Line 11 Sliding Door Hardware Set, 50C to 120C, No TrackHafele 940.42.077 Sliding Door Hardware, Slido D-Line11 50C to 120C, set without running track, is designed for seamless functionality and aesthetic appeal in both residential and commercial spaces. This versatile system accommodates 1-leaf to 4-leaf wooden and sliding frame doors, allowing for both ceiling installation and wall mounting. With adjustable door height ranging from -3 to +3 mm, it ensures a perfect fit. The innovative soft and self-closing mechanism simplifies operation with a low opening force, making it user-friendly. Tested for enhanced closing speeds of up to 0.5 m/s, the system incorporates a shock absorber that manages closing speeds up to 0.4 m/s for added safety. Suitable for door weights up to 50 kg and widths of at least 499 mm, it works with various door materials, including wood and laminated glass with thicknesses from 6 to 8.7 mm. Installation is straightforward, utilizing a suspension system with an integrated flange clip that requires no tools. The package includes two running gears-one equipped with the soft and self-closing mechanism-ensuring everything needed for a reliable and efficient sliding door setup is at hand. Elevate your space with Hafele's expert engineering and design.
Sliding Door Hardware, Slido D-Line11 50C to 120C, set without running track
for 1-leaf and 4-leaf wooden and sliding frame doors, ceiling installation and wall mounting, door height adjustable, With soft and self closing mechanism on one side, Door width =>499 mm
Soft and self closing mechanism: Low opening force – easy and convenient operation Tested with increased closing speed up to 0.5 m/s Can be retrofitted or replaced at any time Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N Shock absorber: Closing speed with shock absorber tested up to 0.4 m/s
Attributes
Ship via: Can Ship UPS
Adjustment facility: Height adjustment facility: -3 – 3 mm, Height: (1/8") +/-3
Area of application: For wooden and frame doors for 1-leaf to 4-leaf sliding doors

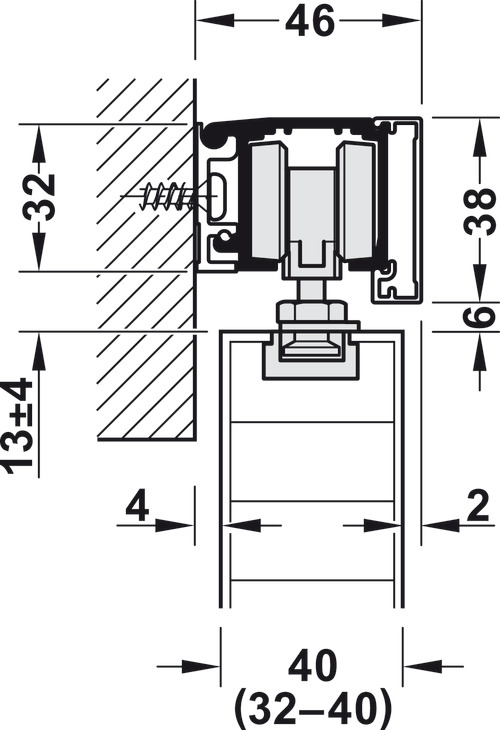

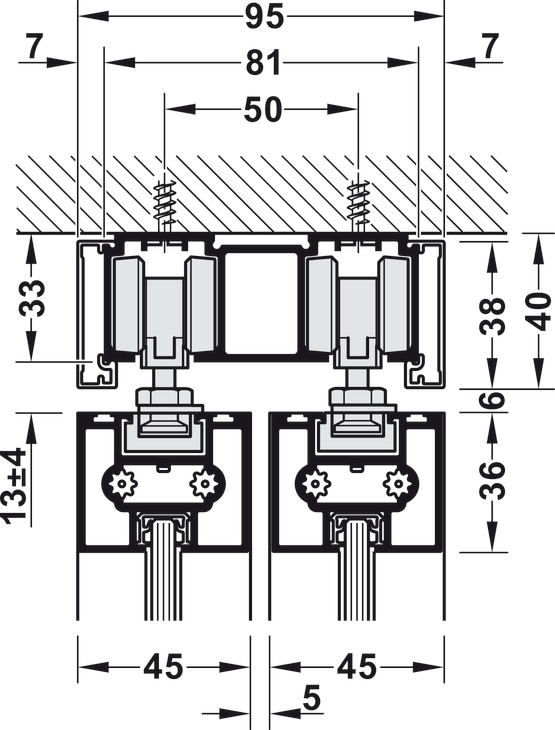

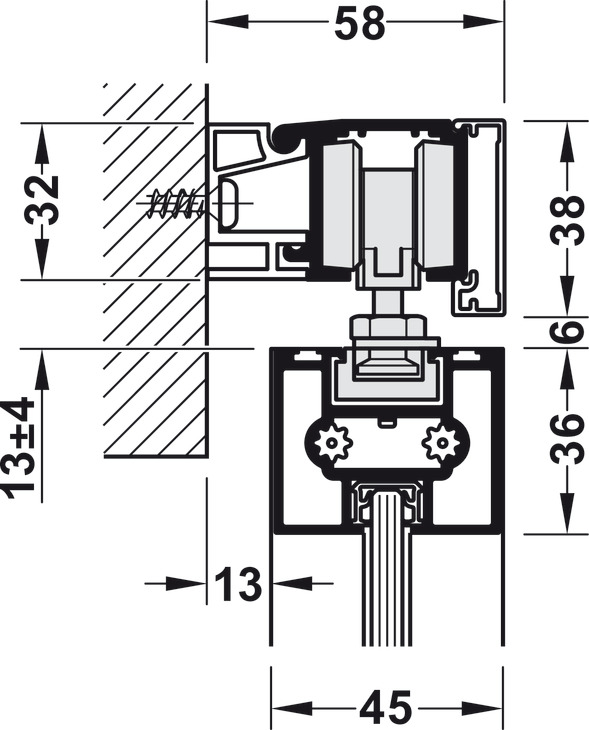

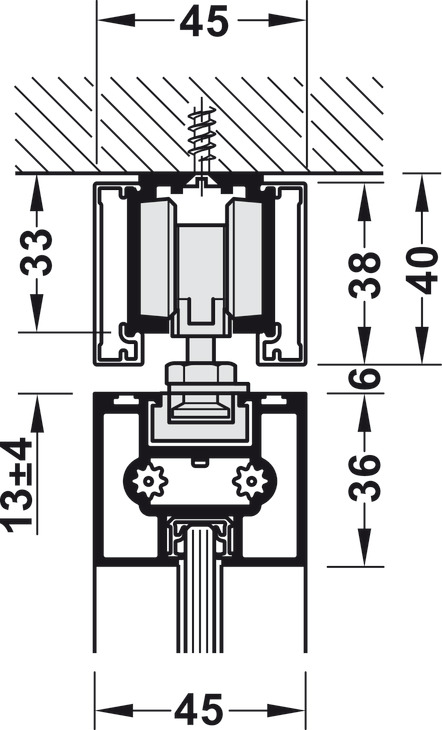

Controller installation options: Ceiling installation, Wall mounting
Door processing: With recess
For door material: wood, frame doors

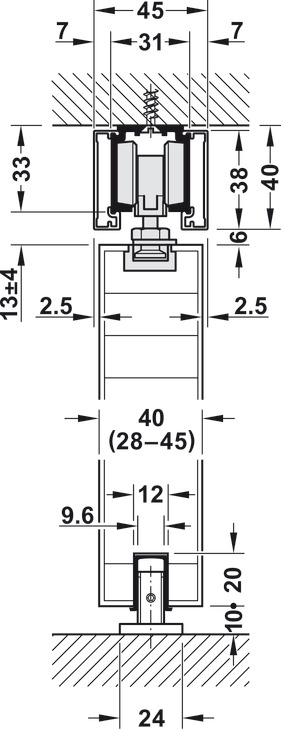

For door thickness: 28 – 45 mm
For door weight: ≤50 kg
For door width: ≥499 mm
For glass thickness with laminated glass: 6-8.7 mm
For glass thickness with tempered safety glass: 6 mm, 8 mm, 5 mm
Installation: Suspension with integrated flange clip (without tools)
Model: 50C
Note on door height: 3,000 mm for frame doors
Note on door width: 1,500 mm for frame doors
Number of doors: 1.00

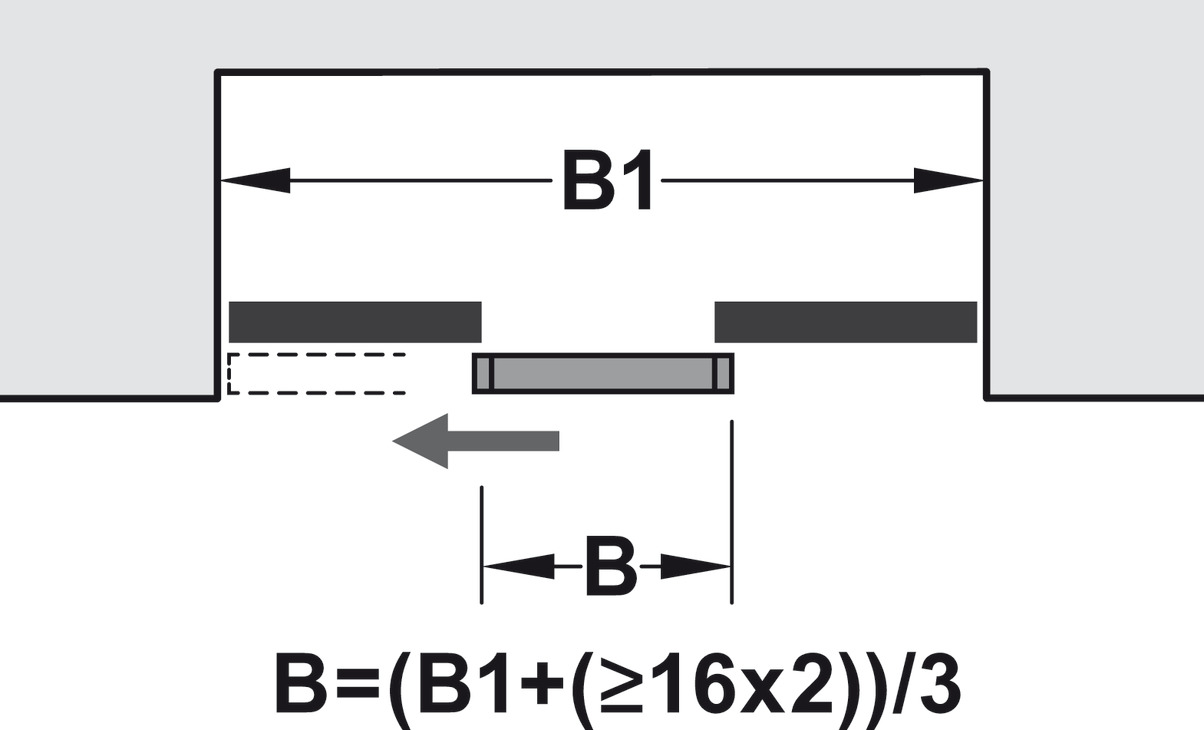

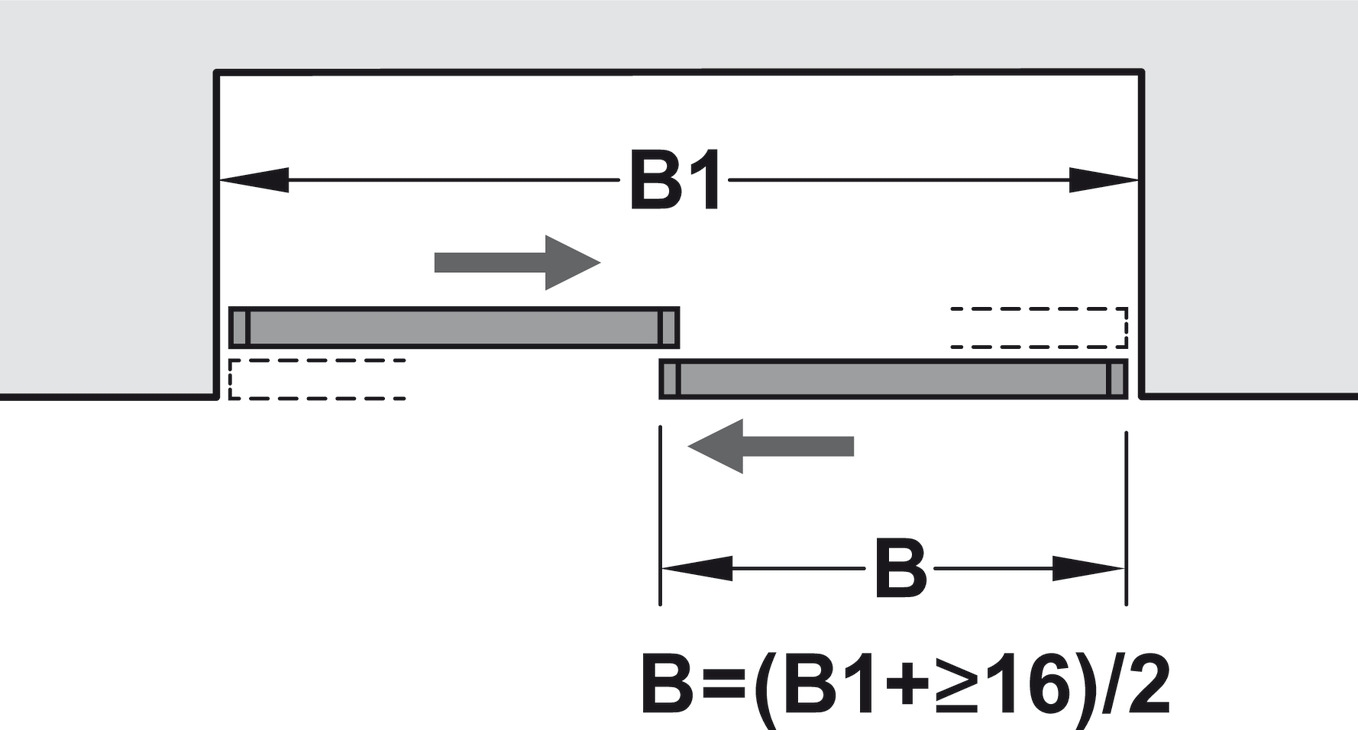

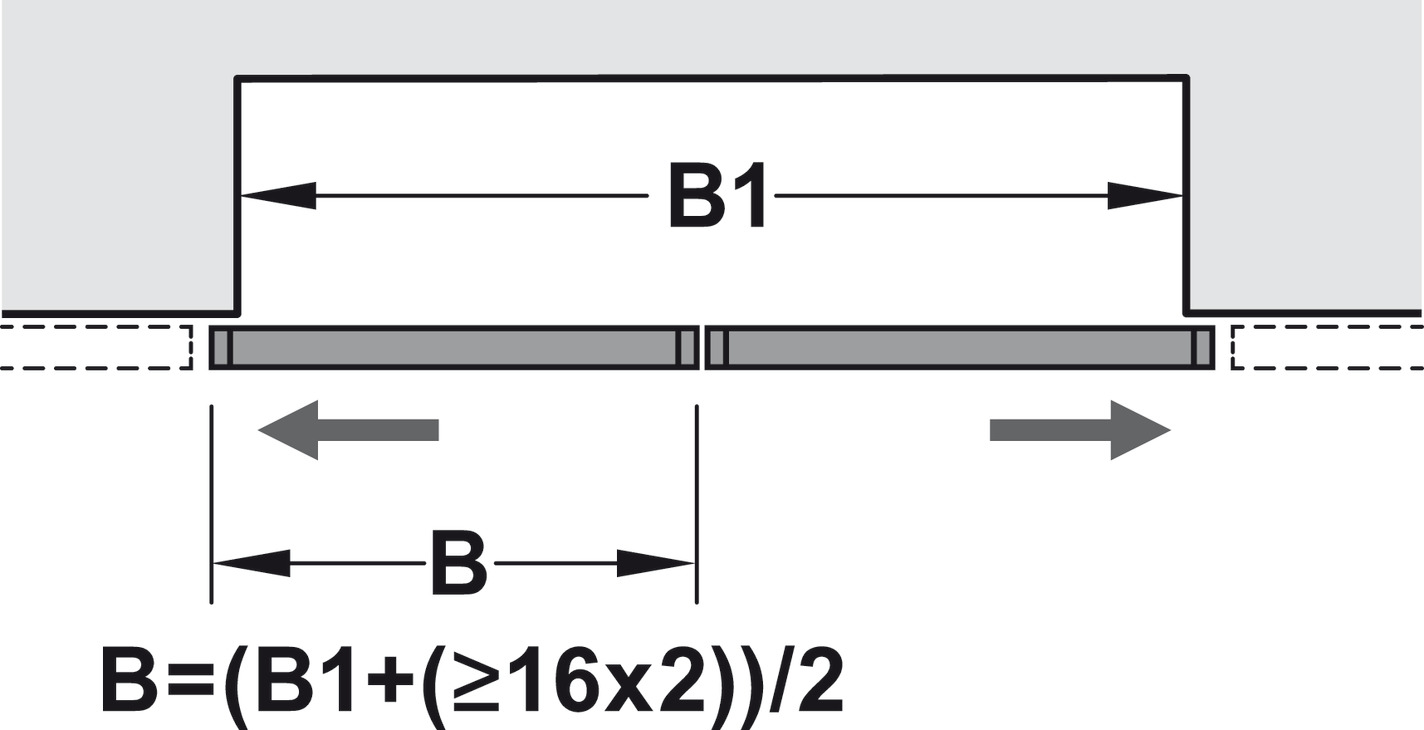

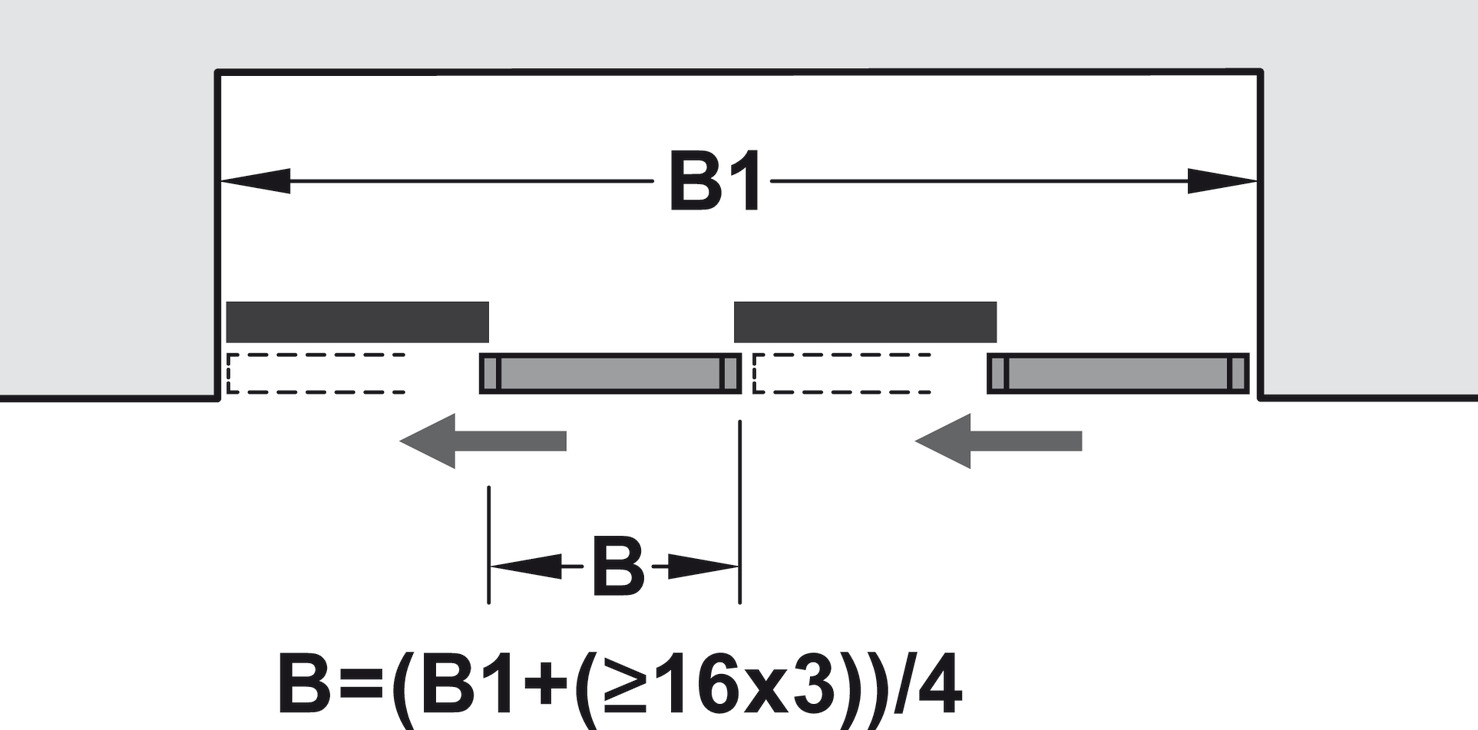

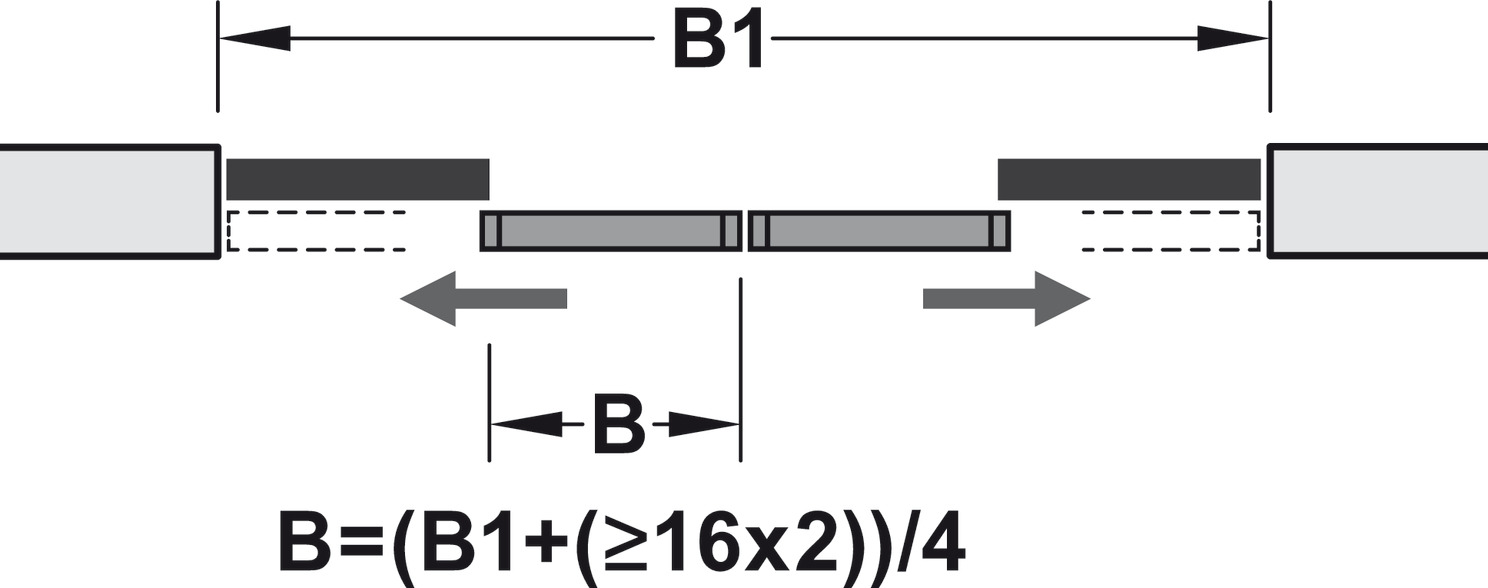

Number of doors per system max.: 1 to 4
Running gear version: Running gear with axle bearing
Running position: Top
Soft closing mechanism: with soft and self closing mechanism on one side, with track buffer on one side

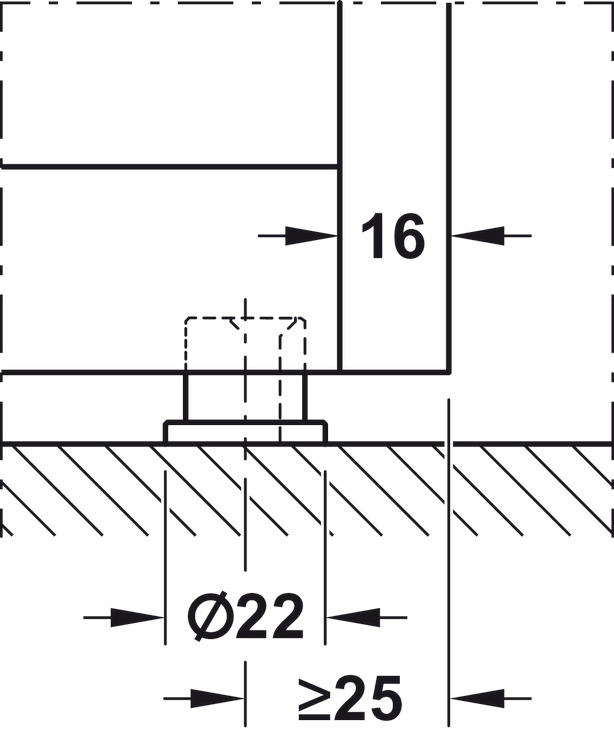

Supplied with: 2 running gears (1 with soft and self closing mechanism) 1 clear threshold floor guide 1 track buffer with retaining spring 1 release device with stopper for soft and self closing mechanism
